- Products Information

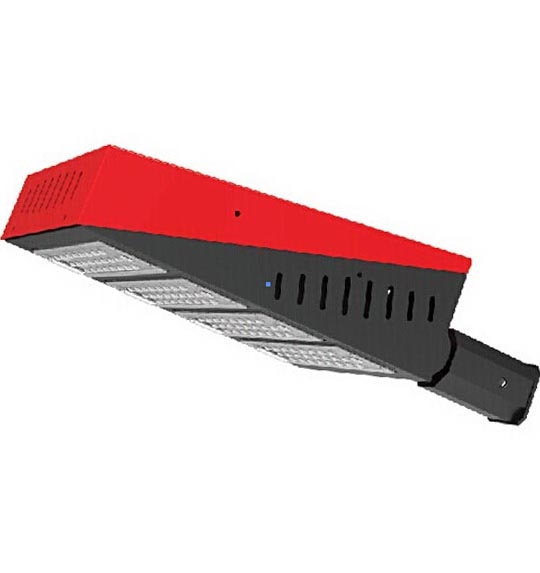

100W LED Street Light Specification
Optical Data
| LED Type | LED QTY | System Efficacy | Luminous Flux | CCT | Beam Angle | CRI | System Efficiency |
| Nichia | led | 100LM/W(CCT=5000K) | 10000LM | 3000K,4000K,5000K | 60°/120° | ?73Ra | ?90% |
Electrical Data
| Power Supply | Input Voltage | Power Frequency | Output Voltage | Output Current | Power Efficiency | Power Factor | Total Harmonic Distortion |
| Meanwell | AC100?277V | 47?63Hz | DC28.8?48V | 4.6A ?Constant Current? | ?93% | ?0.93 | ?15% |
Others
| System Power Consumption | LED power consumption | Fixture Material | Ingress Protection | Luminaire Net Weight | Life span |
| 100W ±5W | 90W ±5W | Aluminum Alloy | IP65 | 4.2±0.3kg | ?50000Hrs(Ta=30?@LM70 ) |
Technical Info
| Junction Temperature (Tj) | Storage Temperature | Operating Temperature | Operating Humidity | Outlook dimensions | Export carton size |
| ?85?(Ta=30?) | -40?+70? | -30?+55? | 15?90%RH | 383 ×203.5×383mm | 440×260×440mm |
Optional Info
| Installation Method | Fixture Color | Intelligent control |
| Loop Hanging/Ceiling Mounting/Wall mounting | Black/White/Grey/Black Body&Red Front | DALI controller/Microwave sensor |
Structure
