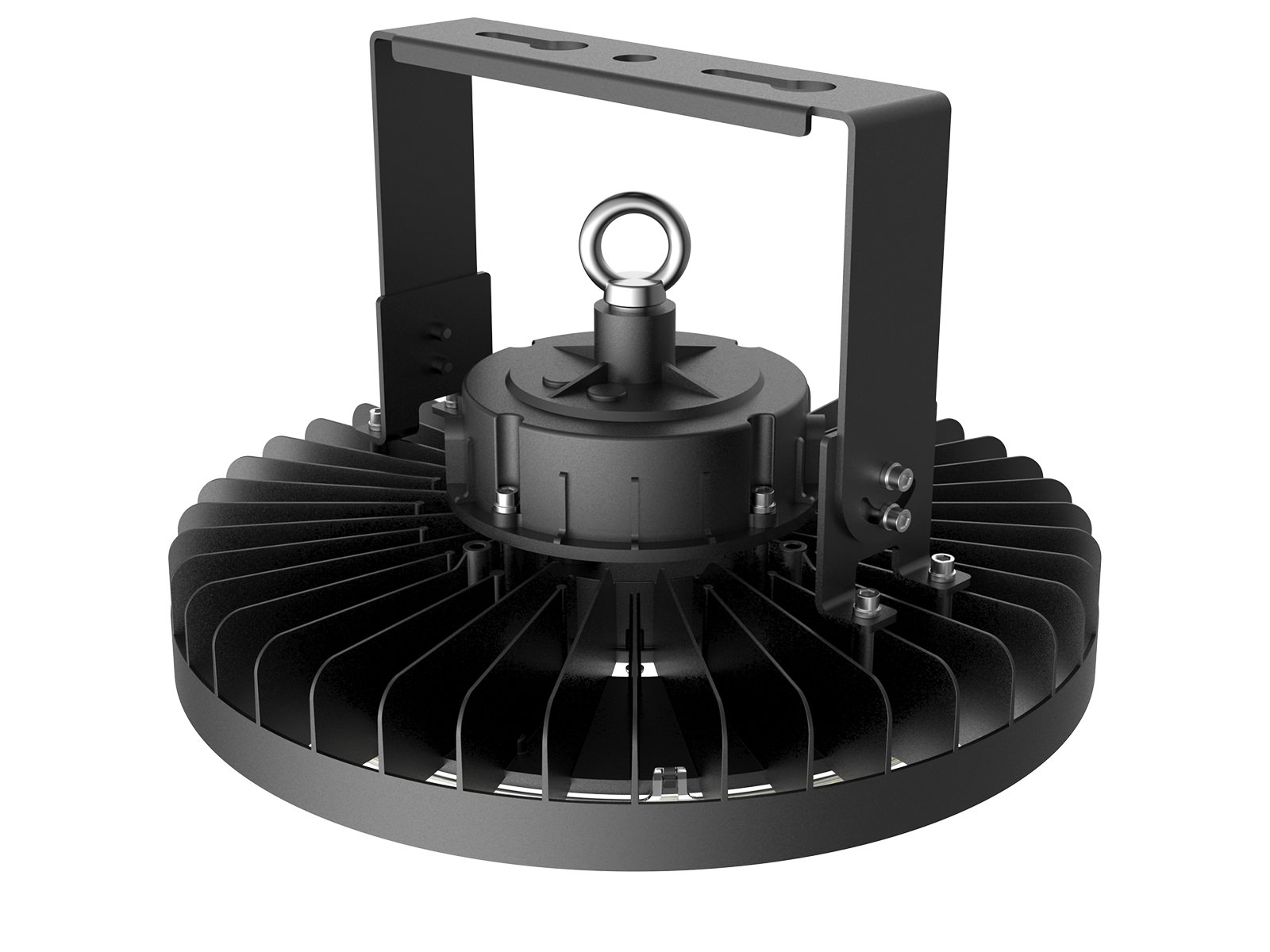

Built-in microwave sensor makes HB32 compact and looks small. No dust accumulation design will help the fixture better heat dissipation and work longer. HB32 high bay will be an excellent luminaire for heavy dust area, like carpenter workshop, paper processing area, etc.
| Code | HB32-100/H | HB32-120/H | HB32-150/H | HB32-200/H |
|---|---|---|---|---|
| Power Consumption | 100±5W | 120±6W | 150±7W | 200±10W |
| LED Type | SMD | |||
| Luminous Flux (±5%) | 19000lm | 22800lm | 28500lm | 38000lm |
| Efficacy (5000K, Ra70) | 190(±5%) LM/W | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | H00108/H00111/H00115/H00121 | |||
| Input Voltage | 100-240V/100-277V | |||
| Power Factor | ≥0.93 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 4kV line-line,6kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | ∅360 x 178mm (∅14.17" x 7.01") | |||
| Luminaire Net Weight | 3.9±0.3kg (8.6±0.66Lbs) | 4.3±0.3kg (9.47±0.66Lbs) |
||
| Export Carton Size | 410×410×224mm (16.14" x16.14" x 8.82") | |||
| Gross Weight | 5.1±0.3kg (11.68±0.66Lbs) | 5.5±0.3kg (12.57±0.66Lbs) |
||
| Finish | Powder Coating | |||
| Fixture Color | Black | |||
| IP Rating | IP65 | |||
| Mounting Option | Loop Hanging / Ceiling Mounting / Wall Mounting | |||
| Operating Temperature | Normal: -30°C to + 50°C (-22°F to 122°F) | |||
| Life Time | >50,000Hrs | |||
| Dimmable | Dimmable and Non-dimmable | |||
| Intelligent Control | Microwave motion Sensor/Zigbee | |||
| Accessory | PC Lens - H00108/H00111/H00115/H00121 | |||
| Safety Chain - 250mm chain, M8 + M8 Hook>340mm | ||||
| Plug - EU/AU Standard Plug | ||||
| PC Reflector | ||||
| ALU Reflector | ||||
| Ceiling Mount Bracket | ||||
