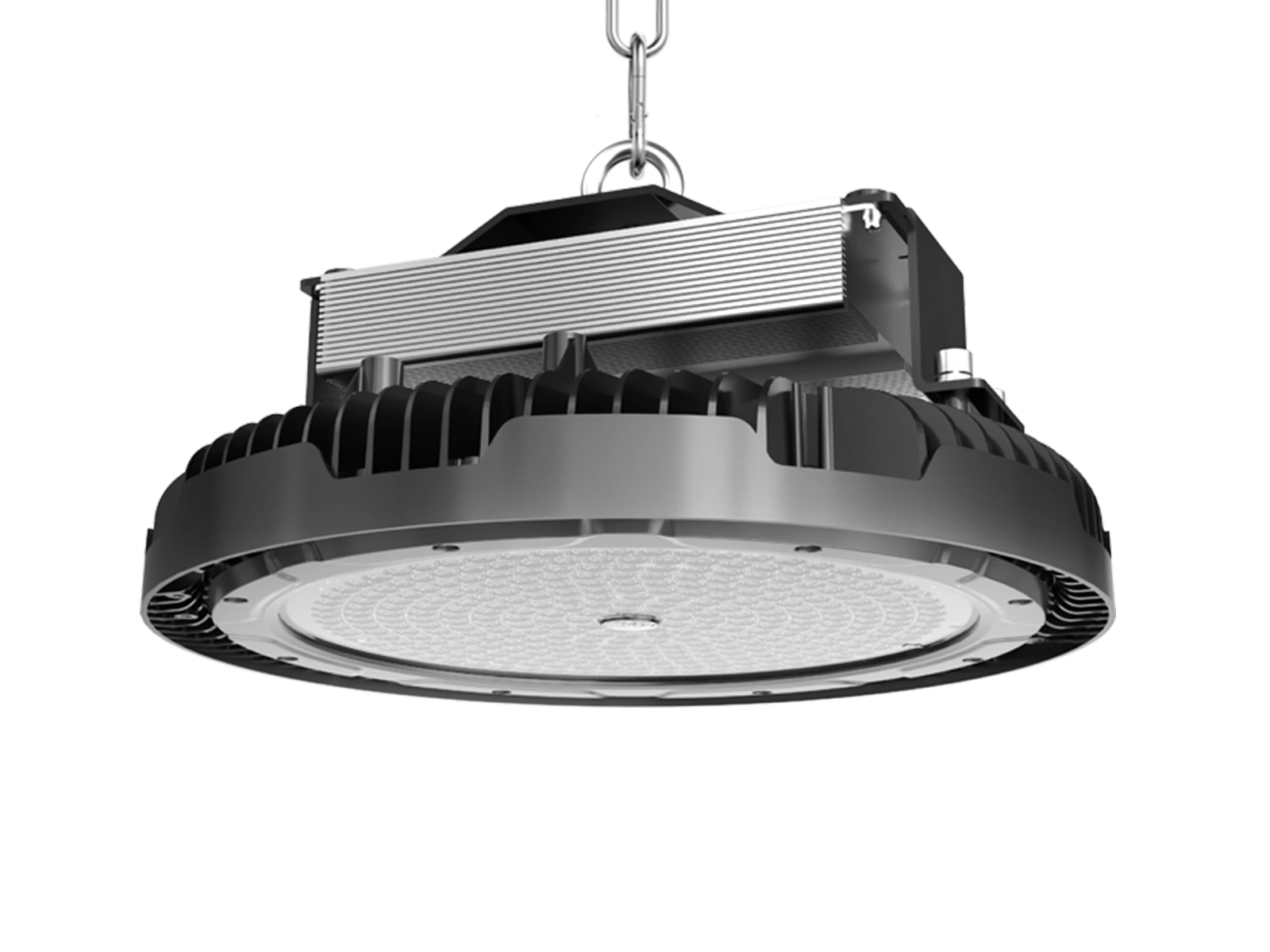

HB37 HiSpace

HB37 HiSpace

HB37 equipped with high performance LED source, 450W with 160lm/w get up to 72000 total lumen. Perfect replace 1000W HID/Metal Halide lamp. Die-casting Aluminum allows superior thermal management to ensure long lifetime. Multiple beam angle for option, including narrow 15deg to get directional illumination to far distance. Fixtures are rated for ambient operating temperature range -30°C to 50°C.  Superior design with IP66 waterproof, as ideal solution for indoor high ceiling mounting in factory, warehouse, sports hall and outdoor high mast application.

  • UFO shape high power high bay and floodlight.
  • 450W delivers high lumen package 72,000lm.
  • Lighter weight heat sink but has good thermal management too.
  • HB37 is the best retrofit choice of 1000W old high bay
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HB37 high ceiling high mast lighting fixture
Series CodeHB37
Power450W
Efficacy140lm/W, 160lm/W
Input Voltage100-240 VAC, 100-277VAC, 277-480VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection6kV line-line, 10kV line-earth, 20kV line-earth
UGR level22(H29201)
ControlDimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor, ZigBee Control, Wireless
IP RatingIP65
IK RatingIK08
CCT3000K, 4000K, 5000K
CRI(Ra)80, 70

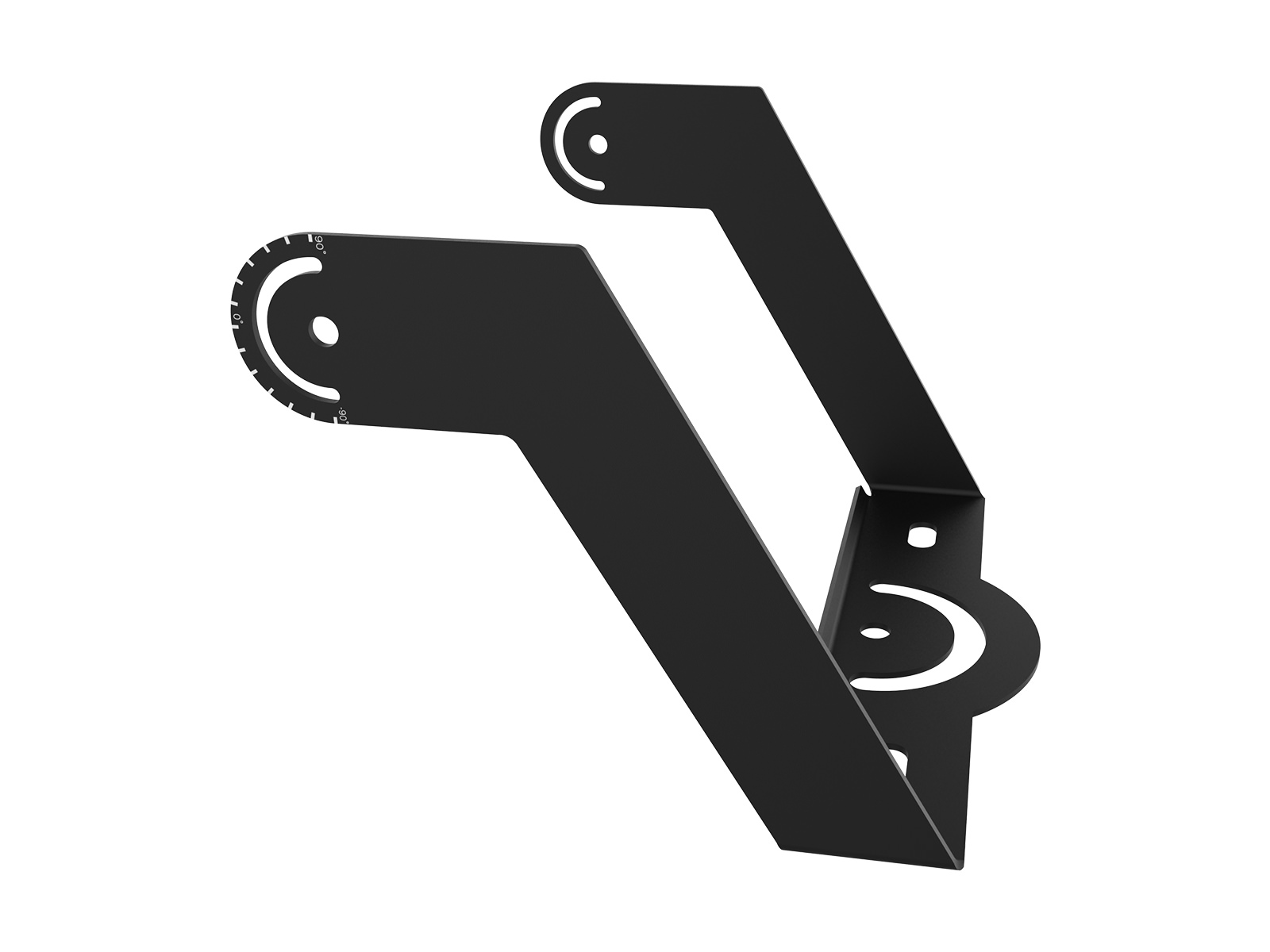

Mounting OptionLoop Hanging, Bracket Mounting, Ceiling Mounting
Warranty5 Years
