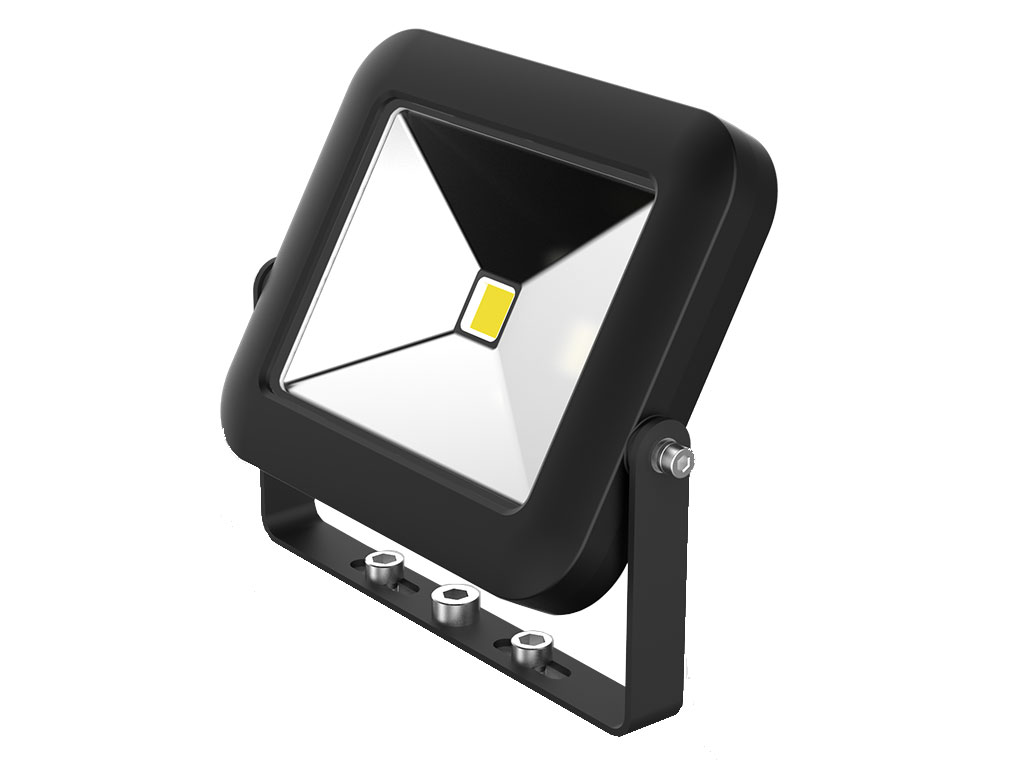

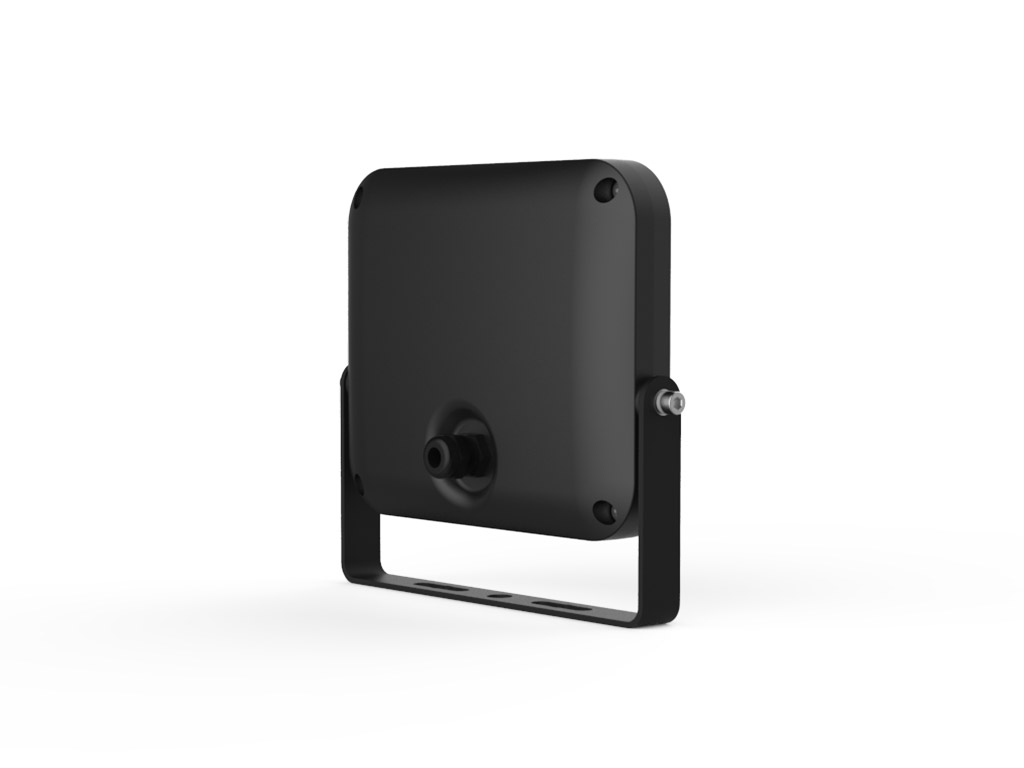

FL04 HiCover IV

The product has been delisted on the website, please contact our sales team.
Mini size, but high efficiency lighting
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

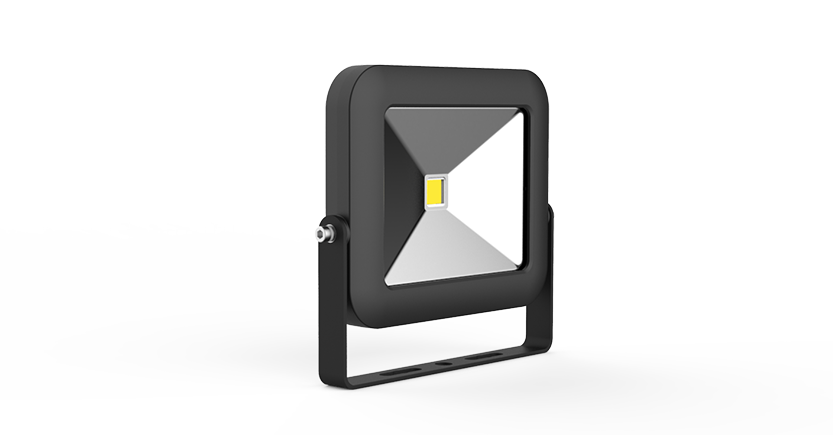

BLACK


GENERAL PRODUCTS DATA :

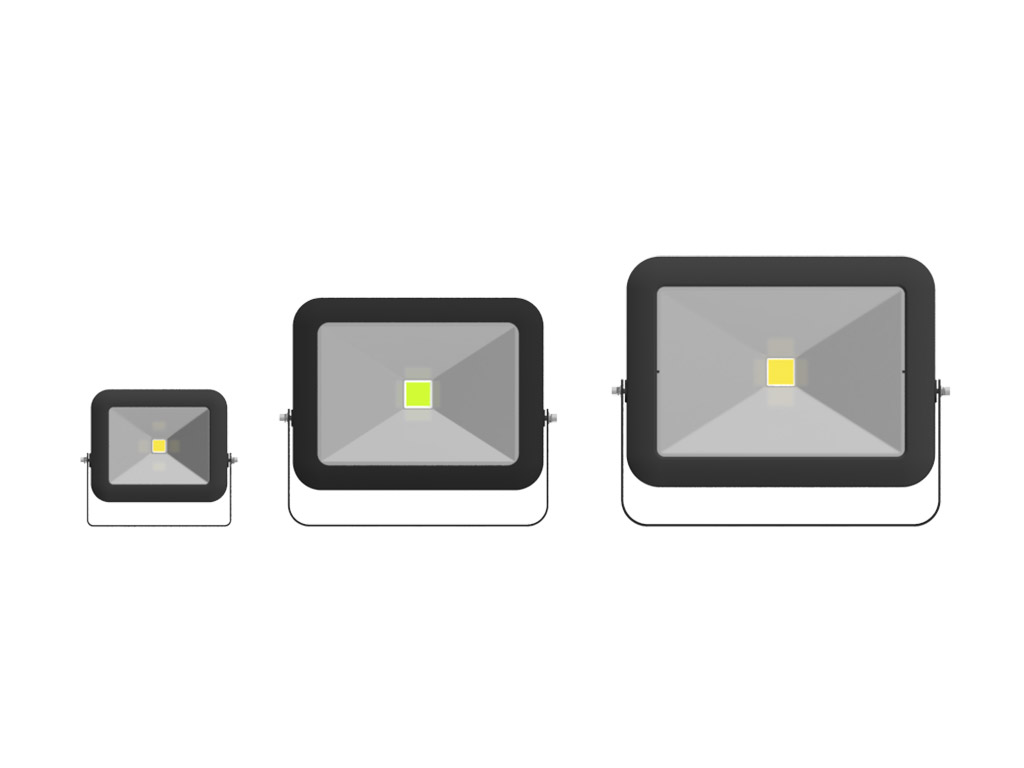

Item No. FL04-10 FL04-30 FL04-50
Optical Data
System Efficacy 115lm/W 125lm/W 115lm/W
Luminous Flux 1,150lm 3,750lm 5,750lm
Wattage 10W 30W 50W
CCT 3000K, 4000K, 5000K
CRI Ra70, Ra80
Electrical Data
Input Voltage 100-240Vac
Input Surge Protection 2kV line-line, 4kV line-earth
Power Frequency 50/60Hz
Power Factor >0.90
Environmental
Ingress Protection IP66
LED Life Span >50000Hrs(Ta=30°C@L70)
Storage Temperature -40°C to +70°C(-40°F to +158°F)
Operating Temperature -30°C to +50°C(-22°F to +122°F)
Operating Humidity 15-90%RH
Housing Aluminum Alloy
Protection Class Class I
Weight / Packaging
Luminaire Net Weight 0.6±0.3kg
(1.32±0.66Lbs)
1.6±0.3kg
(3.53±0.66Lbs)
2.5±0.3kg
(5.51±0.66Lbs)
Outlook Dimensions φ163×143×42mm
(6.42"×5.63"×1.65")
φ287×238×48mm
(11.3"×9.37"×1.89")
φ350×281×59mm
(13.78"×11.06"×2.32")
Export Carton Size 415×390×375mm
(16.34"×15.35"×14.76")
440×330×565mm
(17.32"×13"×22.24")
480×385×325mm
(18.9"×15.16"×12.8")

LIGHT DISTRIBUTION CURVE :

CERTIFICATIONS :



WARRANTY :

5 Years Warranty



OPTIONAL INFO :

Installation Method
