ST37 Anole

Performance LED Street Lights Easy Maintenance Plug and Play Sensor Parking Lot Variety Installation Back Light Control Optional

Anole offers economical area lighting solutions with advanced thermal management, simple heat sink, and surge protection. It provides sustained performance without compromising quality for various applications.

  • 30W/40W/60W/100W/150W/200W/300W, to replace75W to 750W HID luminaires.
  • The LED driver chamber can be opened separately
  • Different types of mounting brackets are available in options, such as a pole-arm (square or round), slip fitter, trunnion, and U bracket as a floodlight.
  • Optional backlight control shield
  • Plug-and-play sensors
  • ANSI 3G rated for high-vibration applications
  • Compact and lightweight design with low EPA
  • 5 years warranty or 10 year warranty options
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
ST37 led street light 1
ST37 led street light 2
ST37 led street light 3
ST37 led street light 4
Series CodeST37
Power30W, 40W, 60W, 100W, 150W, 200W, 300W
Efficacy145lm/W, 155lm/W
Input Voltage120-240VAC 220-240VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection6kV line-line, 10kV line-earth
ControlPlug-and-play Microwave, PIR Sensor, Zhaga Socket
IP RatingIP65
IK RatingIK08
CCT5000K, 4000K
CRI(Ra)70, 80
Operating Temperature-30°C to + 45°C

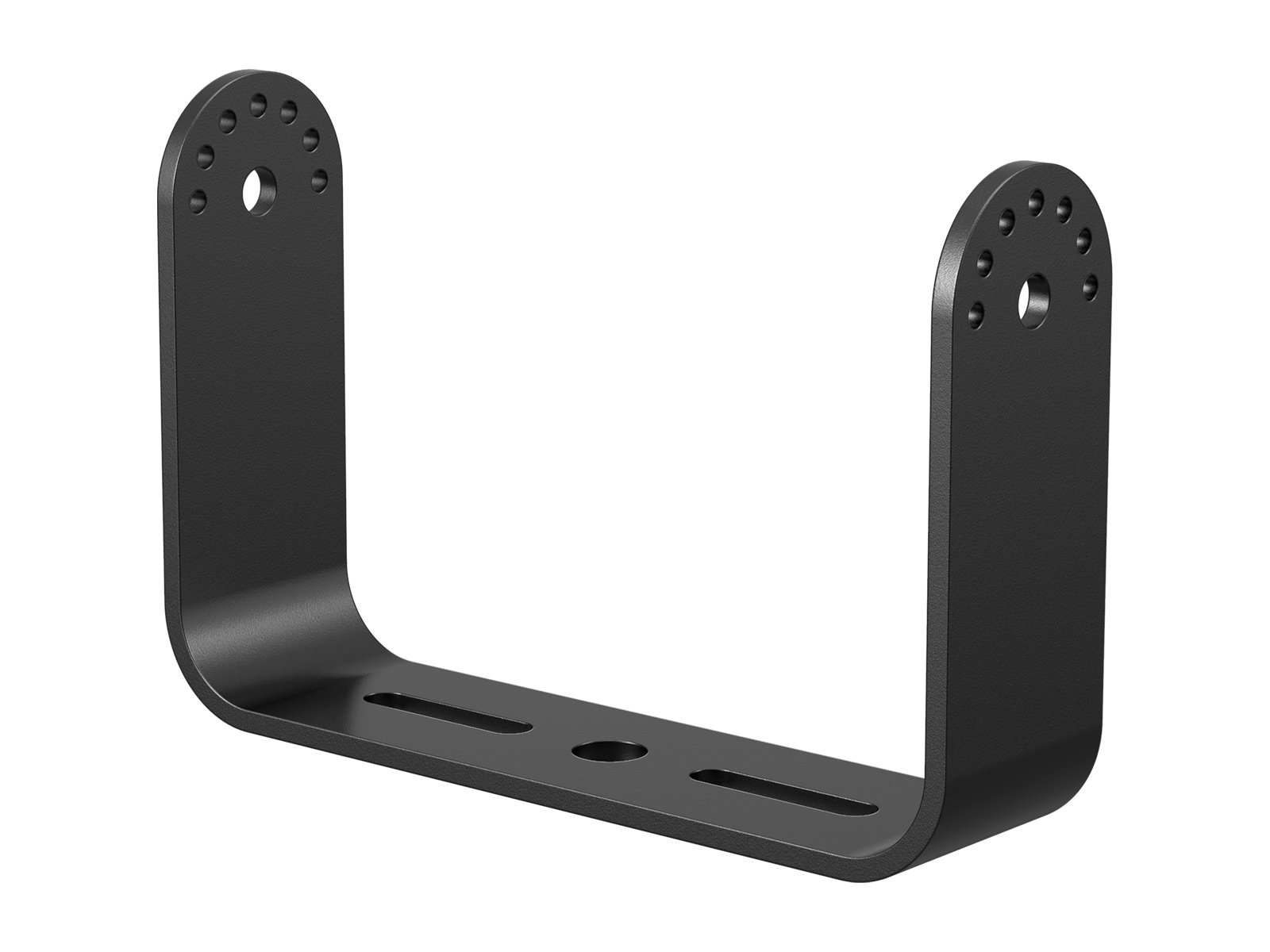

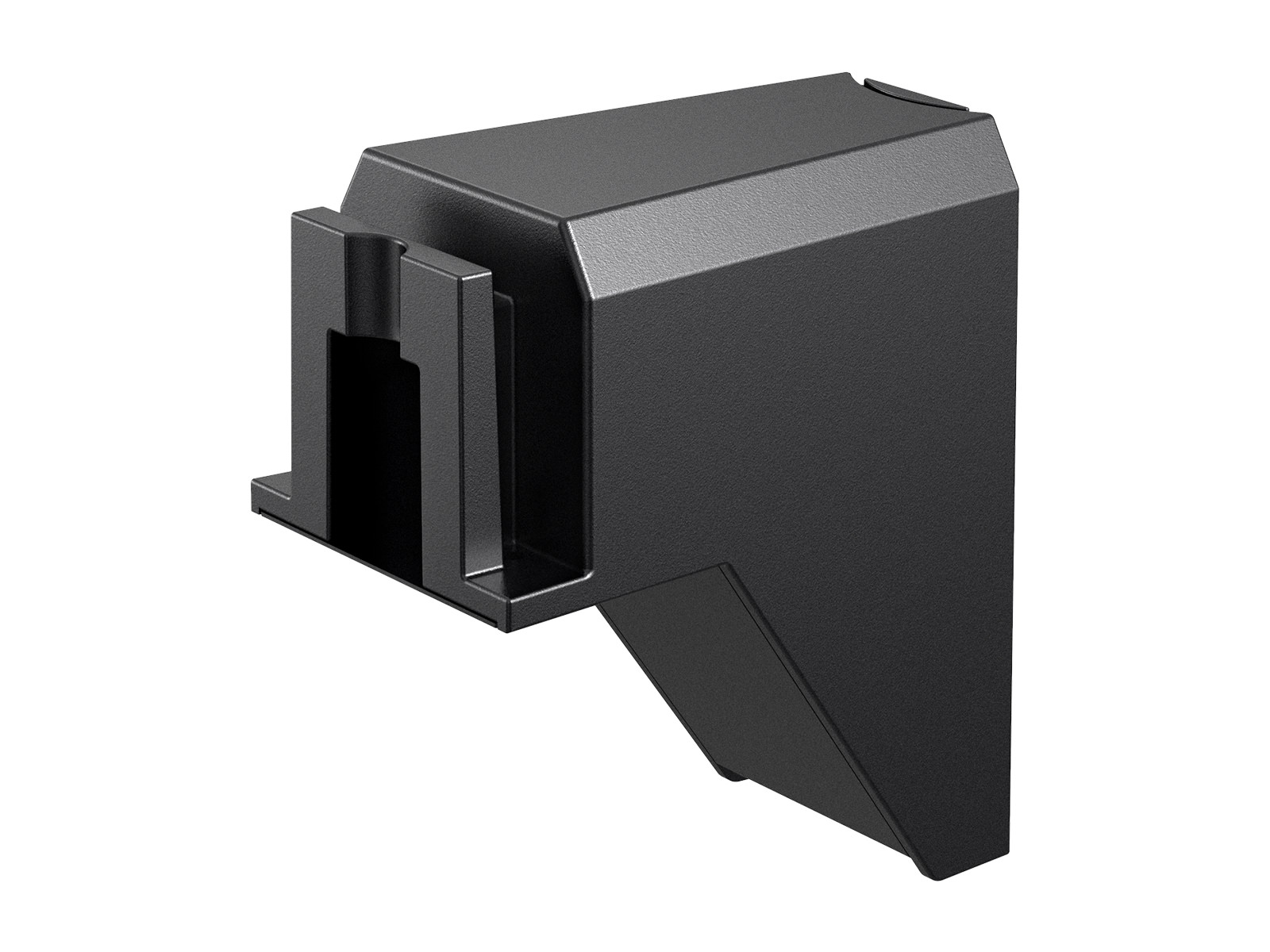

Mounting Optionintegral slipfitter, Yoke, Square pole, Round pole
Warranty5 Years, 10 Years
