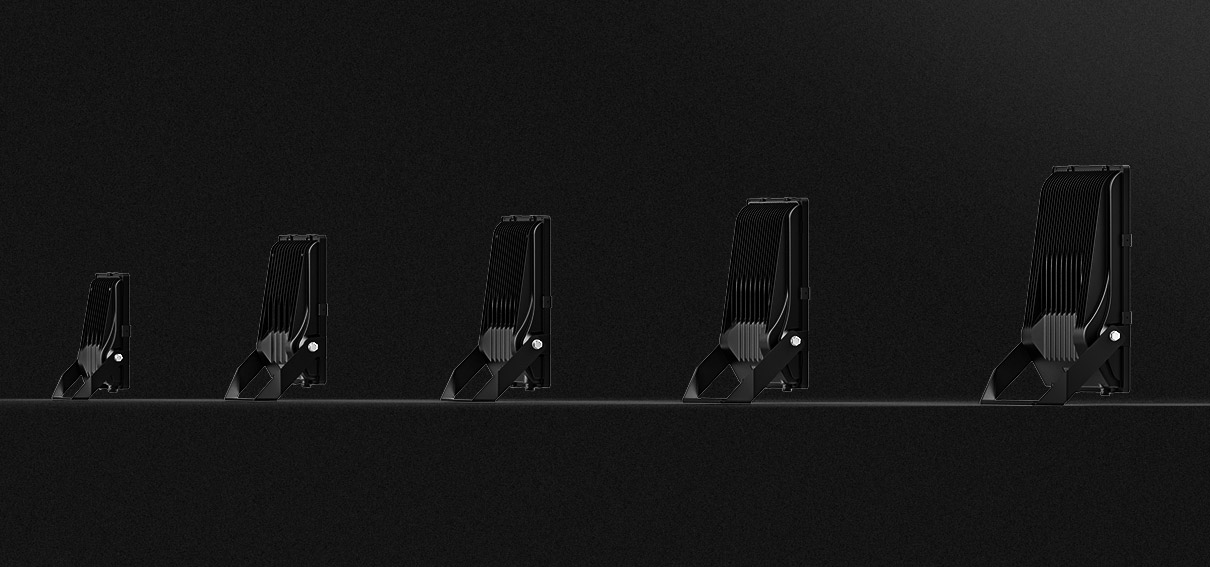

Five kinds of size to achieve the best cost control for different wattage. Asymmetrical optics covering the best sellers 50W-100W-150W-200W-300W. Six professional optics for multiple indoor and outdoor applications. The external vent avoid internal fogging and frosting. Cost-effective version for wholesale market.
| Model No. | FL15-050 | FL15-100 | FL15-150 | FL15-200 | FL15-300 |
|---|---|---|---|---|---|
| Power Consumption | 50±5W | 100±5W | 150±8W | 200±10W | 300±9W |
| Luminous Flux(±5%) | 6750lm | 13500lm | 20250lm | 27000lm | 40500lm |
| Efficacy (5000K, Ra70) | 135(±5%) LM/W | ||||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | ||||
| Color Rendering Index | Ra70 (Ra80, optional) | ||||
| Beam Angle | F00801, F01601, F01602, F01603, F01604, F01605,F01606 | ||||
| Input Voltage | 100-240 VAC / 100-277 VAC | ||||
| Power Factor | >0.92 | ||||
| Frequency | 50 / 60 Hz | ||||
| Surge Protection | 6kV line-line, 10kV line-earth | ||||
| Driver Type | Constant Current (CC) | ||||
| Product Dimension |
314×240×63mm (12.36"×9.45"×2.48") |
418×330×77mm (16.46"×12.99"×3.03") |
451×330×77mm (17.76"×12.99"×3.03") |
494×395×87mm (19.45"×15.55"×3.43") |
567×465×97mm (22.32"×18.31"×3.82") |
| Luminaire Net Weight |
2.6±0.3kg (5.73 ±0.66Lbs) |
3.9±0.3kg (8.6 ±0.66Lbs) |
4.5±0.3kg (9.92 ±0.66Lbs) |
6.3±0.3kg (13.89 ±0.66Lbs) |
9.5±0.3kg (20.94 ±0.66Lbs) |
| Export Carton Size |
364×105×280mm （ 14.33"×4.13"×11.02"） |
474×120×368mm （ 18.66"×4.72"×14.49"） |
516×130×368mm （ 20.31"×5.12"×14.49"） |
568×140×430mm （ 22.36"×5.51"×16.93"） |
652×160×510mm （ 25.67"×6.3"×20.08"） |
| Gross Weight |
2.9±0.3kg (6.39±0.66Lbs) |
4.5±0.3kg (9.92±0.66Lbs) |
5.2±0.3kg (11.46±0.66Lbs) |
7.2±0.3kg (15.87±0.66Lbs) |
10.6±0.3kg ( 23.37±0.66Lbs) |
| Finish | Powder Coating | ||||
| Fixture Color | Black | ||||
| IP Rating | IP66 | ||||
| Effective Projected Area (EPA) | 0.06 | 0.11 | 0.13 | 0.17 | 0.24 |

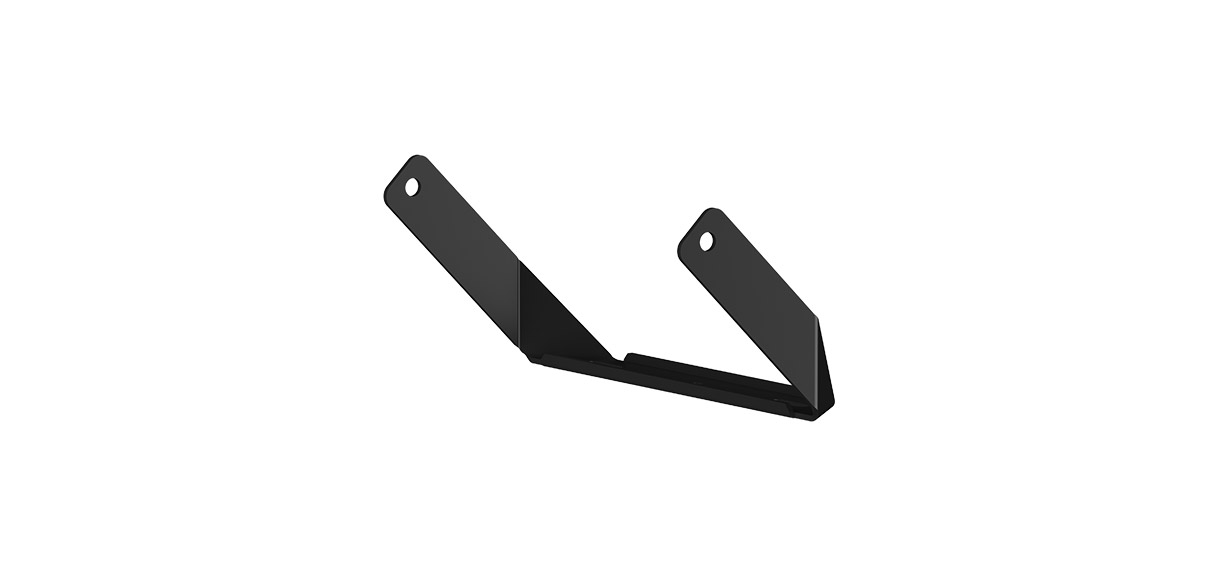

| Mounting Option | Bracket Mounting / Pole Mounting | ||||
| Operating Temperature | -30°C to + 50°C (-22°F to 122°F) | ||||
| Life Time | >50,000Hrs (Ta=30°C@L70) | ||||
| Warranty | 5 Years | ||||
| Dimmable | Dimmable and Non-dimmable | ||||
| Intelligent Control | DALI Control | ||||
| Accessory | Pole mounting adaptor: 42mm/60mm/76mm | ||||
| Protective wire mesh | |||||
| Plug - EU/US Standard Plug | |||||
| Spec & Data sheets FL15 HiMor LED flood light V2.0 |
| IES file FL15 HiMor 5000K Ra70 Nichia LED |
| IES file FL15 HiMor 5000K Ra70 Refond LED |
| Installation Manual FL15 HiMor LED flood light V1.0 |
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| PWR3JV93 | FL15-300/T-5070 | Premium | WWWCEN |
| PXW9I1YM | FL15-300/T-4070 | Premium | WWWCEN |
| PDJT0XXL | FL15-200/T-5070 | Premium | WWWCEN |
| P6T1T8SS | FL15-200/T-4070 | Premium | WWWCEN |
| PJQVPUW1 | FL15-150/T-5070 | Premium | WWWCEN |
| PKG0OTWB | FL15-150/T-4070 | Premium | WWWCEN |
| PTMCKM5J | FL15-100/T-5070 | Premium | WWWCEN |
| PO92IV8Z | FL15-100/T-4070 | Premium | WWWCEN |
| PT012HOZ | FL15-050/T-5070 | Premium | WWWCEN |
| PW1EW63I | FL15-050/T-4070 | Premium | WWWCEN |
| Series Code | FL15 |
|---|---|
| Power | 50W/100W/150W/200W/300WW |
| Efficacy | 130LM/W, 135LM/W |
| IP Rating | IPIP66 |
