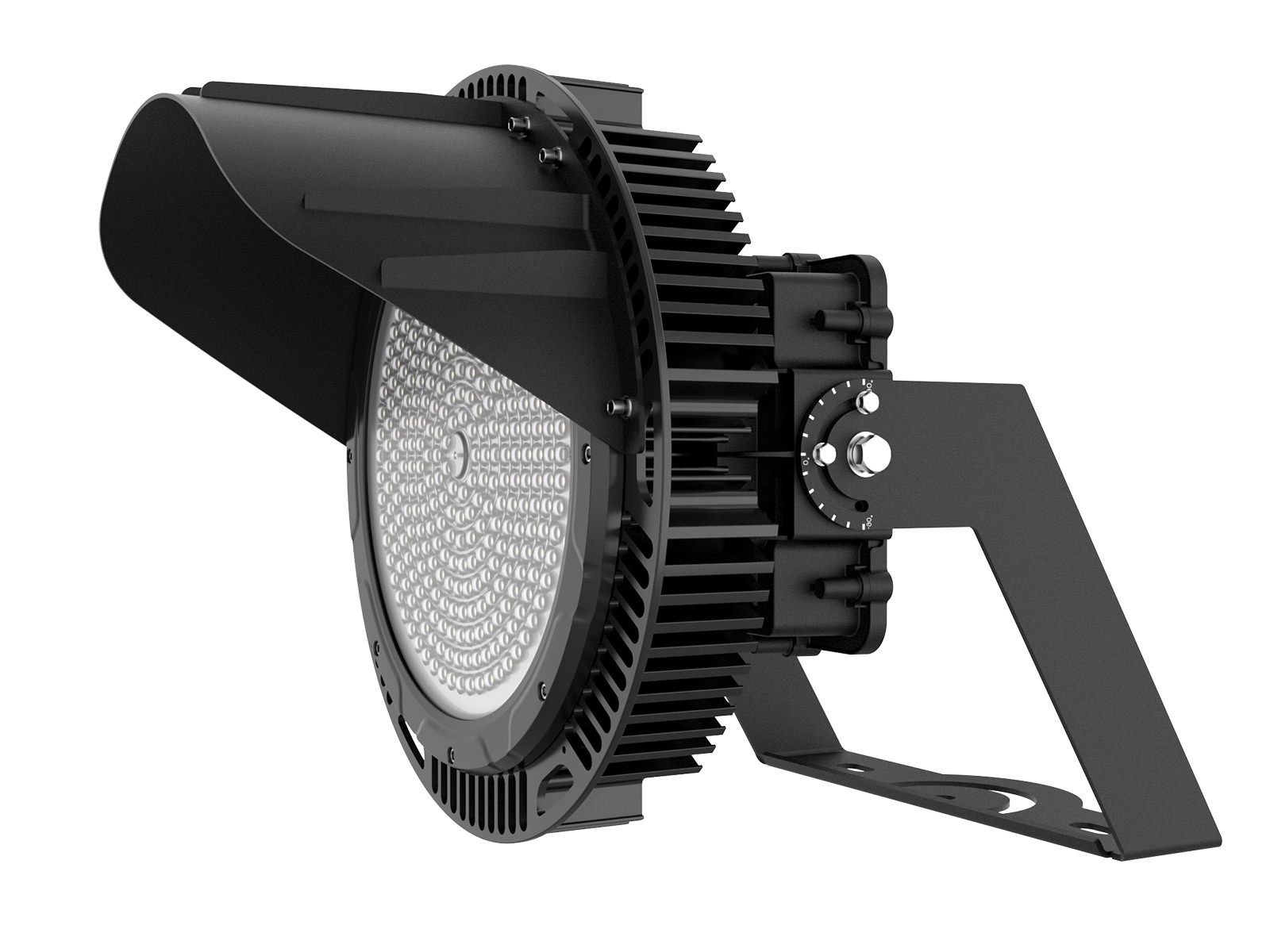

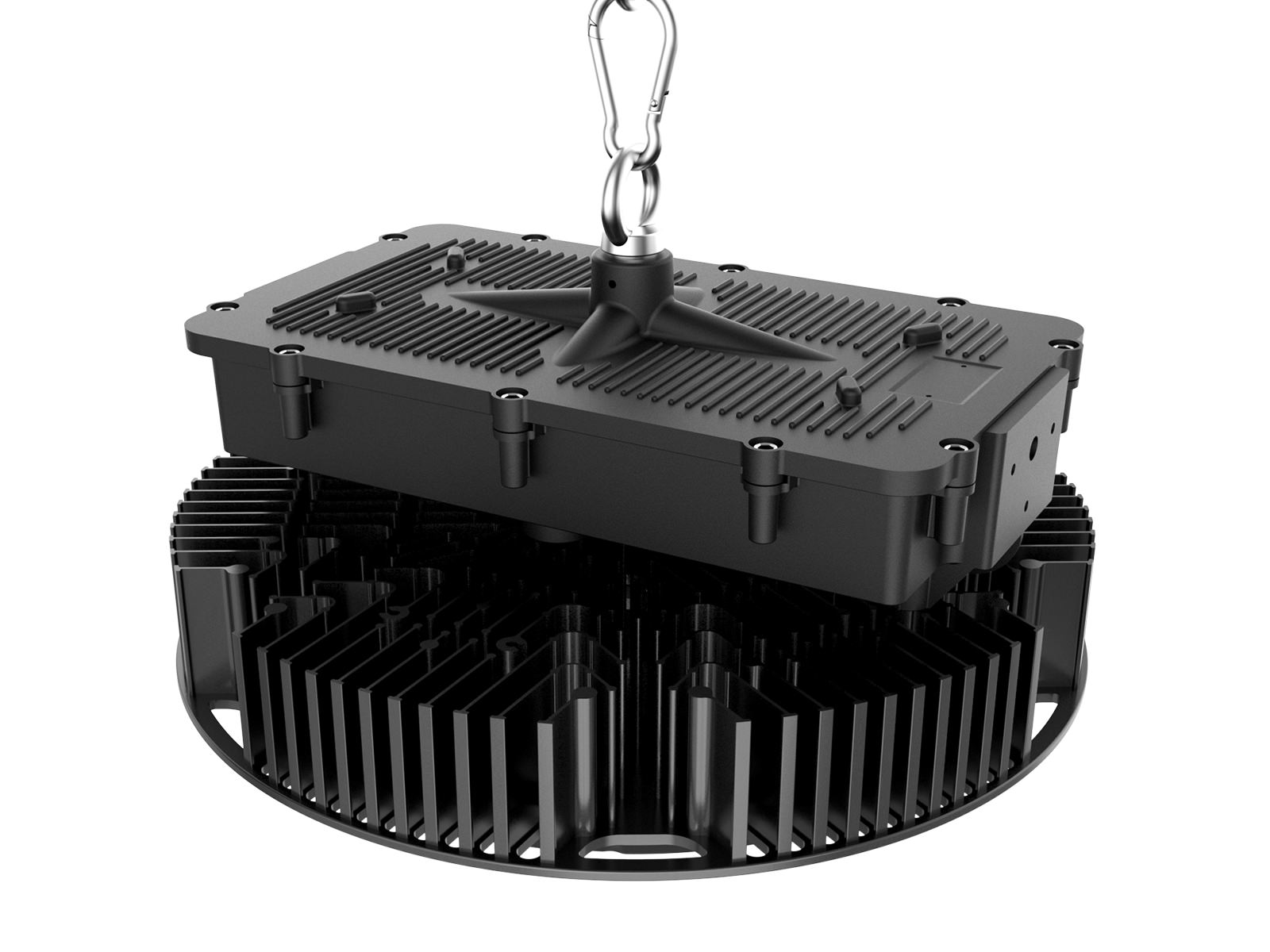

HiFar is an amazing high-powered light which can performs as both LED high bay light and LED flood light. Comes with 450W and 600W, it is very good product for hangar area as LED high bay light. And very good solution for larger sport area working as flood light. Available in 5 beam angles, narrow, middle and wide which can covers most applications. Try it, you will get a big surprise.
| Model No. | HB17-450 | HB17-600 | ||||
|---|---|---|---|---|---|---|
| Power Consumption | 450±13W | 600±18W | ||||
| Luminous Flux (±5%) | 72000LM | 96000LM | ||||
| Efficacy(5000K Ra70) | 160lm/w | |||||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||||
| Color Rendering Index | Ra70 (Ra80 optional) | |||||
| Beam Angle | H31201,H31202,H31203,H00A07 | |||||
| Input Voltage | 100-240 VAC / 100-277 VAC / 277-480 VAC | |||||
| Power Factor | >0.92 | |||||
| Frequency | 50 / 60 Hz | |||||
| Surge Protection | 6kV line-line, 10kV line-earth | |||||
| Surge Protection | Constant Current (CC) | |||||
| Product Dimension （Loop Hanging） | Φ454 x 263m (Φ17.87" x 10.35") | |||||
| Product Dimension （Bracket Mounting） | 633 x 467x 454mm (24.92" x 18.39" x 17.87") | |||||
| Luminaire N. W.（Loop Hanging） | 12.8±0.3kg (28.22±0.66Lbs) | 13.5±0.3kg (29.76±0.66Lbs) | ||||
| Luminaire N. W.（Bracket Mounting） | 16.5±0.3kg(36.38±0.66Lbs) | 17.5±0.3kg (38.58±0.66Lbs) | ||||
| Export Carton Size：Light Carton Size | 524×330×528mm(20.63"×12.99"×20.79") | |||||
| Export Carton Size：Bracket Carton Size | 365×310×450m(14.37"×12.2"×17.72") (4PCS/CTN) | |||||
| Export Carton Size：Visor Carton Size | 430×370×220mm(16.93"×14.57"×8.66") (8PCS/CTN) | |||||
| Gross Weight (Loop Hanging) | 14.8±0.3kg(32.63±0.66Lbs) | 15.6±0.3kg (34.39±0.66Lbs) | ||||
| Finish | Powder Coating | |||||
| Fixture Color | All Black | |||||
| IP Rating | IP65 | |||||
| Mounting Option | Loop Hanging / Bracket Mounting | |||||
| Operating Temperature | -30°C to +45°C(-22°F to +113°F) |
|||||
| Life Time | >50,000Hrs(Ta=30°C@L70) | |||||
| Warranty | 5 Years | |||||
| Dimmable | Dimmable and Non-dimmable | |||||
| Intelligent Control | DALI Control / Motion Sensor / ZigBee Control | |||||
| Daylight Sensor / PIR Sensor | ||||||
| Accesssory | PC Optics Lens - H00A07,H31201,H31202,H31203, H29201 | |||||
| Plug - EU/US/AU Standard Plug | ||||||
| Model No. | HB17-450 | HB17-600 | ||
|---|---|---|---|---|
| Power Consumption | 450±13W | 600±18W | ||
| Luminous Flux (±5%) | 72000LM | 96000LM | ||
| Efficacy(5000K Ra70) | 160lm/w | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | H31201,H31202,H31203,H29201,H00A07 | |||
| Input Voltage | 100-240 VAC / 100-277 VAC | |||
| Power Factor | >0.92 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 2kV line-line, 4kV line-earth | 6kV line-line, 10kV line-earth | ||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | Φ454×244mm(Φ17.87"×9.61") | Φ454×244mm(Φ17.87"×9.61") | ||
| Luminaire Net Weight | 11.2±0.3kg(24.69±0.66Lbs) | 11.9±0.3kg(26.23±0.66Lbs) | ||
| Export Carton Size | 524×305×528mm(20.63"×12.01"×20.79") | 524×305×528mm(20.63"×12.01"×20.79") | ||
| Gross Weight | 12.2±0.3kg(26.9±0.66Lbs) | 12.9±0.3kg (28.44±0.66Lbs) | ||
| Finish | Powder Coating | |||
| Fixture Color | Black | |||
| IP Rating | IP65 | |||
| Mounting Option | Loop Hanging / Bracket Mounting | |||
| Operating Temperature | -30°C to +50°C(-22°F to +122°F) | |||
| Life Time | >50,000Hrs(Ta=30°C@L70 | |||
| Warranty | 5 Years | |||
| Dimmable | Non-dimmable | 1-10V Dimmable | ||
| Intelligent Control | DALI Control / Motion Sensor / ZigBee Control | |||
| Daylight Sensor / PIR Sensor | ||||
| Accesssory | PC Optics Lens -H31203 H29201H31202,H31201 | |||
| Plug - EU/US/AU Standard Plug | ||||
| Spec & Data sheets HB17 HiFar LED High Bay light V2.0 |
| IES File HB17 Seoul 3535 LED(15deg) |
| IES File HB17 Seoul 5050 LED(120deg, 60deg,30deg) |
| Installation Manual HB17 HiFar LED High Bay light V1.0 |
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| PWYH0LPU | HB17-600/T-5070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PKC4SQ91 | HB17-600/T-5070-H31203 | Premium | TTTVFD |
| P5BW5LV5 | HB17-600/T-5070-H31203 | Premium | TTTVFH |
| PNYWRBV4 | HB17-600/T-5070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PD8PS3QH | HB17-600/T-5070-H31202 | Premium | TTTVFD |
| PP7S6D4F | HB17-600/T-5070-H31202 | Premium | TTTVFH |
| PWMYSNYW | HB17-600/T-5070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PYWXD1LZ | HB17-600/T-5070-H00A07 | Premium | TTTVFD |
| PNLYH9X1 | HB17-600/T-5070-H00A07 | Premium | TTTVFH |
| PIQ5DQ9V | HB17-600/T-4070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PLUM6A8Z | HB17-600/T-4070-H31203 | Premium | TTTVFD |
| PVWJWBTP | HB17-600/T-4070-H31203 | Premium | TTTVFH |
| PGN0R5QH | HB17-600/T-4070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P6LBSMPG | HB17-600/T-4070-H31202 | Premium | TTTVFD |
| PZD030ZE | HB17-600/T-4070-H31202 | Premium | TTTVFH |
| P72QJKUZ | HB17-600/T-4070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| POXBGKRG | HB17-600/T-4070-H00A07 | Premium | TTTVFD |
| PN1KWUSW | HB17-600/T-4070-H00A07 | Premium | TTTVFH |
| PDWGDGYI | HB17-600/GT-5070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PSATDW4Y | HB17-600/GT-5070-H31203 | Premium | TTTVFD |
| PK2WL0RT | HB17-600/GT-5070-H31203 | Premium | TTTVFH |
| PEX739OV | HB17-600/GT-5070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PAX02211 | HB17-600/GT-5070-H31202 | Premium | TTTVFD |
| P52XQNLH | HB17-600/GT-5070-H31202 | Premium | TTTVFH |
| P0KV0ODM | HB17-600/GT-5070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PH0MKARF | HB17-600/GT-5070-H00A07 | Premium | TTTVFD |
| P1YRPD9L | HB17-600/GT-5070-H00A07 | Premium | TTTVFH |
| PUZRP6PO | HB17-600/GT-4070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P9WH3AVV | HB17-600/GT-4070-H31203 | Premium | TTTVFD |
| PIPRMXE6 | HB17-600/GT-4070-H31203 | Premium | TTTVFH |
| P75BAAXT | HB17-600/GT-4070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PKFQV9E9 | HB17-600/GT-4070-H31202 | Premium | TTTVFD |
| PFECLGFT | HB17-600/GT-4070-H31202 | Premium | TTTVFH |
| PQU48S7W | HB17-600/GT-4070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PF7BTL0N | HB17-600/GT-4070-H00A07 | Premium | TTTVFD |
| PE1OU0XN | HB17-600/GT-4070-H00A07 | Premium | TTTVFH |
| PCKEVLF9 | HB17-450-5070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PRGLCCVZ | HB17-450-5070-H31203 | Premium | TTTVFD |
| PGA74J41 | HB17-450-5070-H31203 | Premium | TTTVFH |
| PTBK98LX | HB17-450-5070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PGEZYY5H | HB17-450-5070-H31202 | Premium | TTTVFD |
| PCVLV8NX | HB17-450-5070-H31202 | Premium | TTTVFH |
| PHCCR9LM | HB17-450-5070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PR9DA3T3 | HB17-450-5070-H00A07 | Premium | TTTVFD |
| PSRWKEG7 | HB17-450-5070-H00A07 | Premium | TTTVFH |
| PR885SWG | HB17-450-4070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P1R5NP9E | HB17-450-4070-H31203 | Premium | TTTVFD |
| P1HR0OYQ | HB17-450-4070-H31203 | Premium | TTTVFH |
| P5A1HAG5 | HB17-450-4070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P79Y373C | HB17-450-4070-H31202 | Premium | TTTVFD |
| PZ6LIQJ6 | HB17-450-4070-H31202 | Premium | TTTVFH |
| PGOP3FWM | HB17-450-4070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PDULSRQ7 | HB17-450-4070-H00A07 | Premium | TTTVFD |
| P2CI2PQ0 | HB17-450-4070-H00A07 | Premium | TTTVFH |
| P2390JVS | HB17-450/T-5070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PHQ9WAHQ | HB17-450/T-5070-H31203 | Premium | TTTVFD |
| P2IPLDZU | HB17-450/T-5070-H31203 | Premium | TTTVFH |
| PSPG40WS | HB17-450/T-5070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PERQIWM8 | HB17-450/T-5070-H31202 | Premium | TTTVFD |
| PUGU7ZZR | HB17-450/T-5070-H31202 | Premium | TTTVFH |
| PRSYDBRN | HB17-450/T-5070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PV9FN6IX | HB17-450/T-5070-H00A07 | Premium | TTTVFD |
| PHWGDBHD | HB17-450/T-5070-H00A07 | Premium | TTTVFH |
| PIG84HHL | HB17-450/T-4070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PQDCHRUM | HB17-450/T-4070-H31203 | Premium | TTTVFD |
| PG8JNF6R | HB17-450/T-4070-H31203 | Premium | TTTVFH |
| PYBDAVSX | HB17-450/T-4070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P4I20AYD | HB17-450/T-4070-H31202 | Premium | TTTVFD |
| P074X6Z0 | HB17-450/T-4070-H31202 | Premium | TTTVFH |
| P9D9G2F1 | HB17-450/T-4070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P7O244T1 | HB17-450/T-4070-H00A07 | Premium | TTTVFD |
| PJBGF4UI | HB17-450/T-4070-H00A07 | Premium | TTTVFH |
| PLTJG3XD | HB17-450/GT-5070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P9WCTF79 | HB17-450/GT-5070-H31203 | Premium | TTTVFD |
| P59M17VD | HB17-450/GT-5070-H31203 | Premium | TTTVFH |
| PPF77PY7 | HB17-450/GT-5070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PTXLH6V5 | HB17-450/GT-5070-H31202 | Premium | TTTVFD |
| PPX1D4DW | HB17-450/GT-5070-H31202 | Premium | TTTVFH |
| PQY8ENEL | HB17-450/GT-5070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P3J7FOHS | HB17-450/GT-5070-H00A07 | Premium | TTTVFD |
| PBP67RN4 | HB17-450/GT-5070-H00A07 | Premium | TTTVFH |
| PBSPQILY | HB17-450/GT-4070-H31203 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PKE9M948 | HB17-450/GT-4070-H31203 | Premium | TTTVFD |
| P4XL6DEF | HB17-450/GT-4070-H31203 | Premium | TTTVFH |
| PGGRF6MT | HB17-450/GT-4070-H31202 [Qualified Pointing Straight Down] | Premium | TTTVES |
| P6RQ1D35 | HB17-450/GT-4070-H31202 | Premium | TTTVFD |
| PVGMSVSR | HB17-450/GT-4070-H31202 | Premium | TTTVFH |
| PX22D1GO | HB17-450/GT-4070-H00A07 [Qualified Pointing Straight Down] | Premium | TTTVES |
| PCYM0WYF | HB17-450/GT-4070-H00A07 | Premium | TTTVFD |
| P4Z6XB04 | HB17-450/GT-4070-H00A07 | Premium | TTTVFH |
| Series Code | HB17 |
|---|---|
| Power | 450W/600WW |
| Efficacy | 160LM/Wlm/W |
| IP Rating | IPIP66 |
