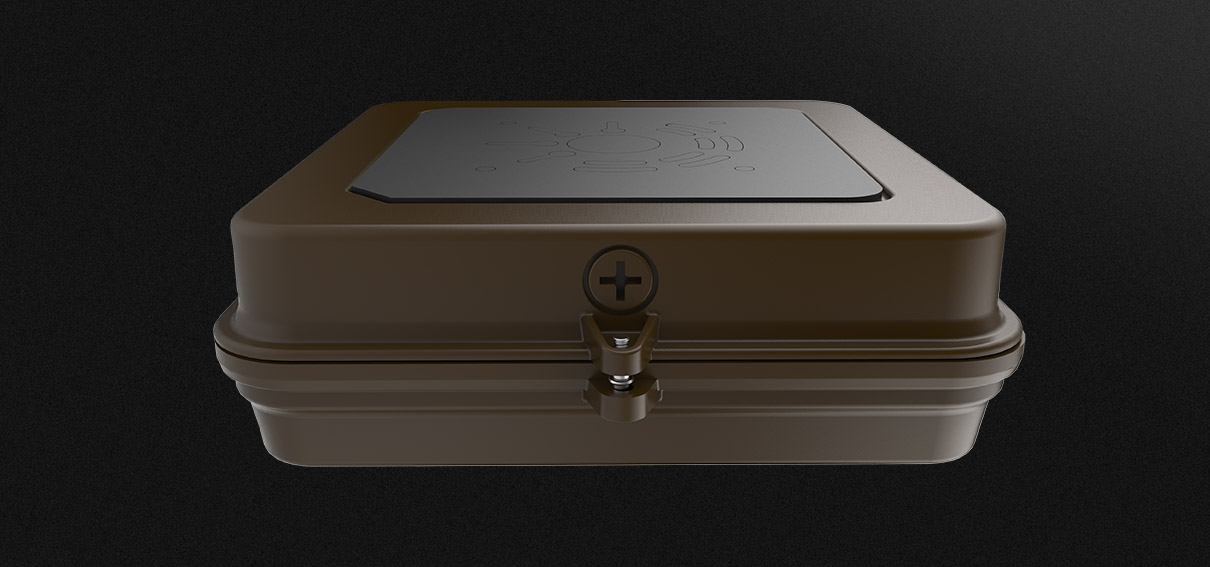

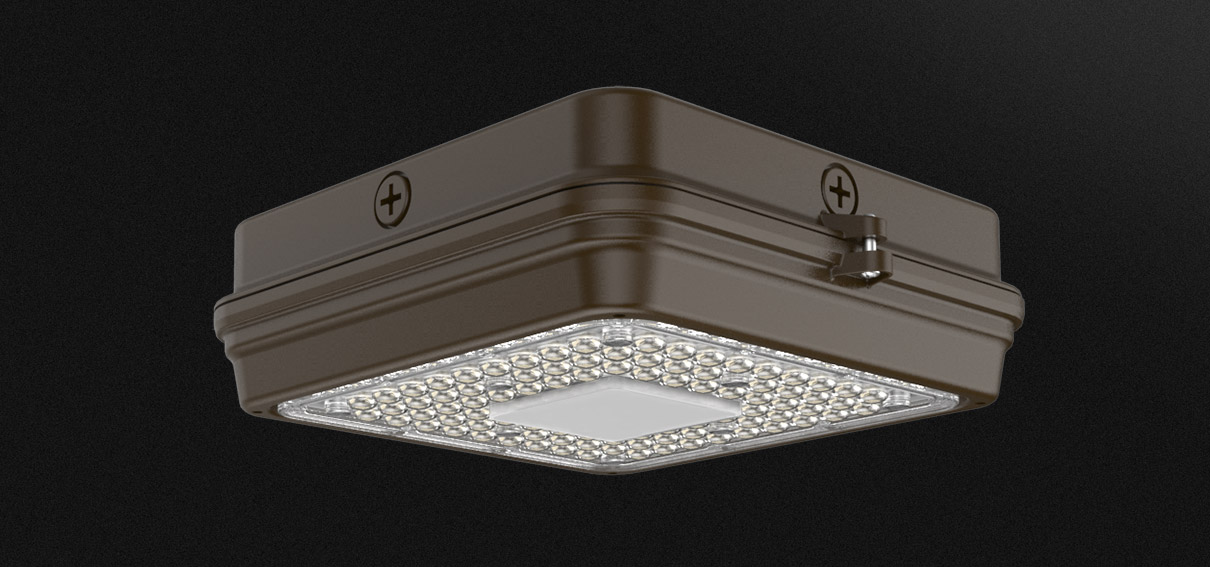

HiPark parking garage light are designed to deliver optimal, low glare illumination by special designed anti-glare cover or precisely designed optical lens. Ceiling mounting and pipe mounting make for easy installation&maintenance which is ideal for both new and existing parking garages. Efficiency up to 140lm/w with intelligent controls for energy-saving, meanwhile fully provide a safe, secure and sustainable solution for your parking garages.
| Model No. | ST14-040 | ST14-060 | ||
|---|---|---|---|---|
| Power Consumption | 40±4W | 60±3W | ||
| Luminous Flux (±5%） | 5600LM | 8400LM | ||
| Efficacy (5000K Ra70) | 140LM/W | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | R08801 | |||
| Input Voltage | 100-240 VAC / 100-277 VAC | |||
| Power Factor | ≥0.90 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 4kV line-line, 6kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | 282×252×89mm(11.1"×9.92"×3.5") | |||
| Luminaire Net Weight | 2.3±0.3kg(5.07±0.66Lbs) | 2.5±0.3kg(5.51±0.66Lbs) | ||
| Export Carton Size | 680×327×319mm(26.77"×12.87"×12.56") | |||
| Gross Weight | 2.7 ± 0.3kg(5.94 ± 0.66Lbs) | |||
| Finish | Powder Coating | |||
| Fixture Color | Bronze | |||
| IP Rating | IP65 | |||

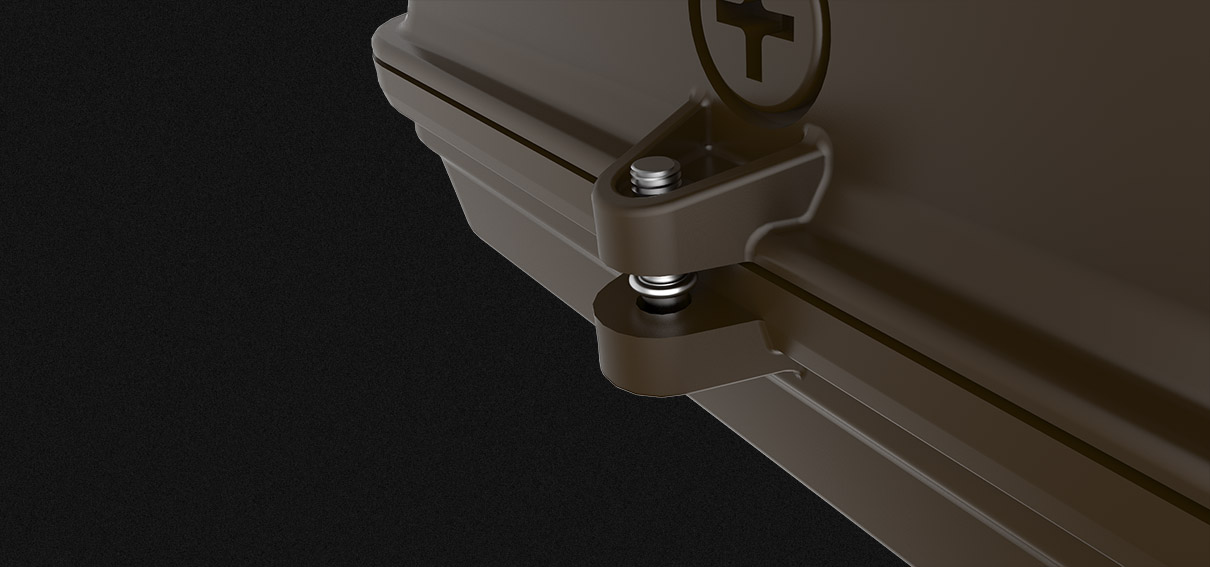

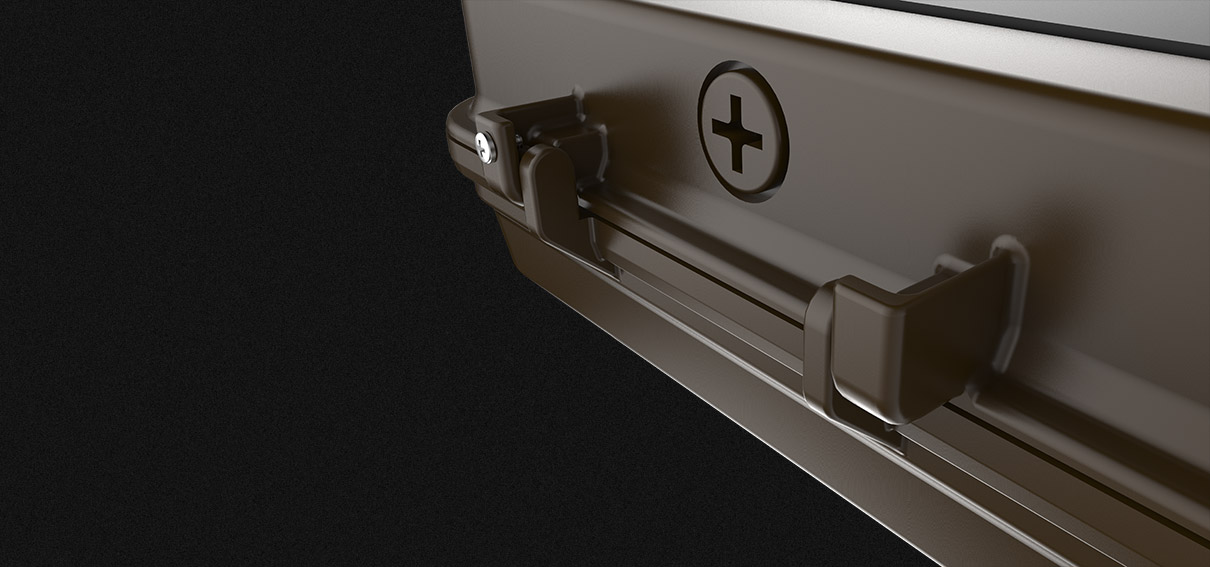

| Mounting Option | Ceiling mounting /NPT mounting | |||
| Operating Temperature | -30°C to + 50°C(-22°F to 122°F) | |||
| Life Time | >50,000Hrs (Ta=30°C@L70) | |||
| Warranty | 5 Years | |||
| Dimmable | 1-10V Dimmable and Non-dimmable | |||
| Intelligent Control | Microwave Sensor /PIR Sensor /Emergency | |||
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| PVVLZS1W | ST14-060/T-5070 | Premium | TTTVDB |
| P68LE3EC | ST14-060/T-4070 | Premium | TTTVDB |
| PK74RPIN | ST14-060/GT-5070 | Premium | TTTVDB |
| P3A9NBFR | ST14-060/GT-4070 | Premium | TTTVDB |
| P4RUY07I | ST14-040/T-5070 | Premium | TTTVDB |
| PXHYO1UV | ST14-040/T-4070 | Premium | TTTVDB |
| PJU0CLSP | ST14-040/GT-5070 | Premium | TTTVDB |
| PCV4O9T4 | ST14-040/GT-4070 | Premium | TTTVDB |
| Series Code | ST14 |
|---|---|
| Power | 40W/60WW |
| Efficacy | 140LM/Wlm/W |
| IP Rating | IPIP65 |
