HA10 LED Explosion-proof Lowbay Light & Jelly Jar

Specification Explosion Proof Series Zone 2 CID2
The HA10 is a compact and lightweight LED explosion-proof light, offering adjustable power output, a versatile lightweight design, and multiple mounting options for enhanced adaptability in various hazardous area environments.
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HA10 Low Bay explosion proof light Jelly Jar
HA10 LED Explosion proof Light Features
HA10 explosion proof light Curve grilleTempered flat Tempered glass
HA10 NEC CEC AEx IECEx ATEX explosion proof light
NEC & CEC:

Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III
NEMA 4X IP66

Aex:

Ex nR IIC T6/T5 Gc
Ex tb IIIC T80℃/95℃ Db
Zone 2, AEx nR IIC T6/T5 Gc
Zone 21, AEx tb IIIC T80℃/95℃ Db

IECEx:

Ex nR IIC T6/T5 Gc
Ex tb IIIC T80/T95℃ Db IP66

ATEX:

II 3G Ex nR IIC T6/T5 Gc
II 2D Ex tb IIIC T80/T95℃ Db IP66

Series CodeHA10
Power30W, 40W, 50W, 60W, 75W
Efficacy160lm/W
Input Voltage120-277Vac, 50 / 60 Hz; 18-48Vdc / 190-315Vdc, 50 / 60 Hz
Power Factor>0.95
Corrosion ClassC4
IP RatingIP66
IK RatingIK08
CCT4000K, 5000K
CRI(Ra)70, 80

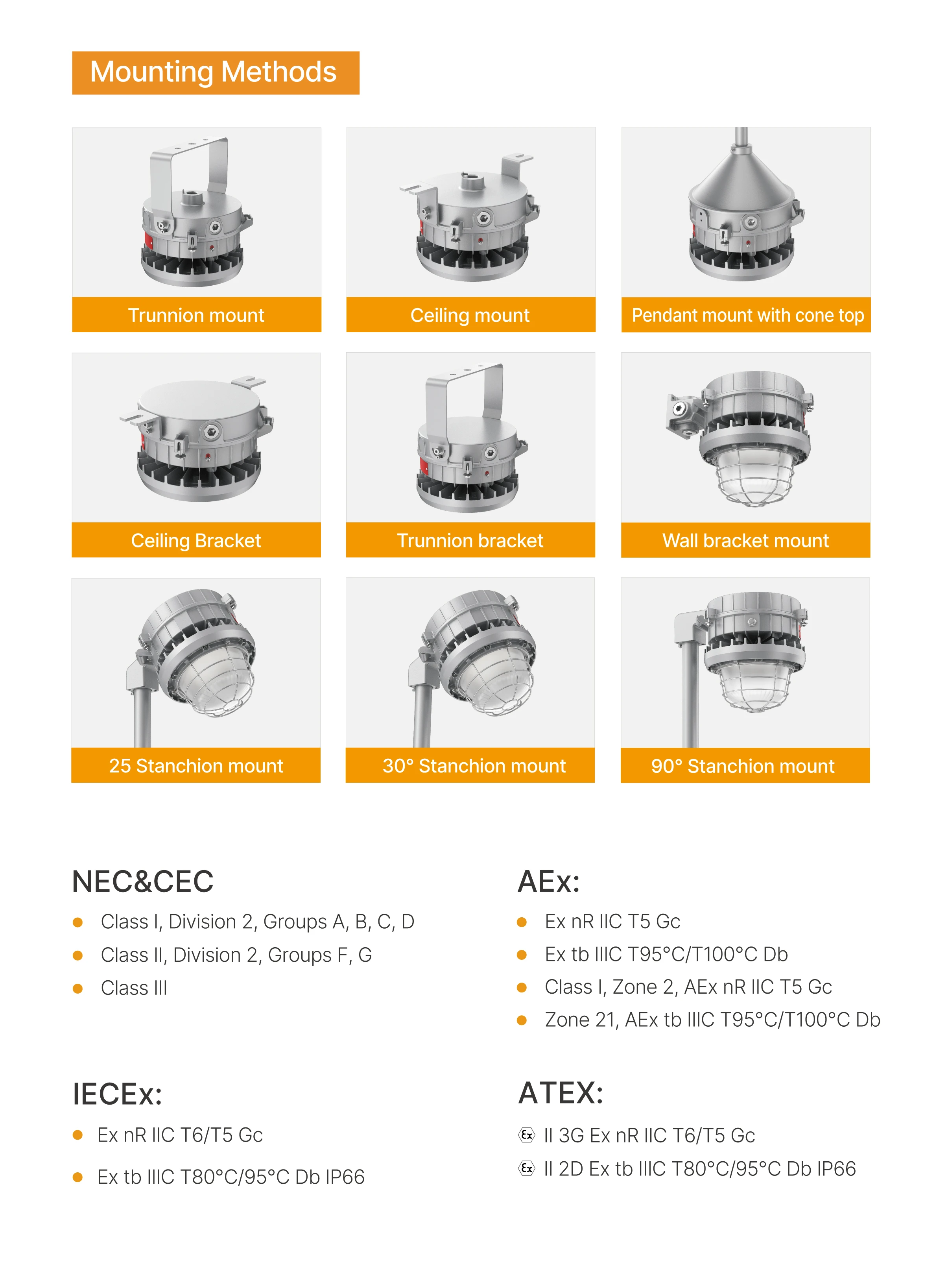

Mounting OptionCeiling Mounting, Pendant, Trunnion mount, Wall Bracket mount, 25°/30°/90° Stanchion mount
Warranty5 Years
