HB73 Ecolux
  1. Home
  2. Product Detail
  3. HB73 Ecolux

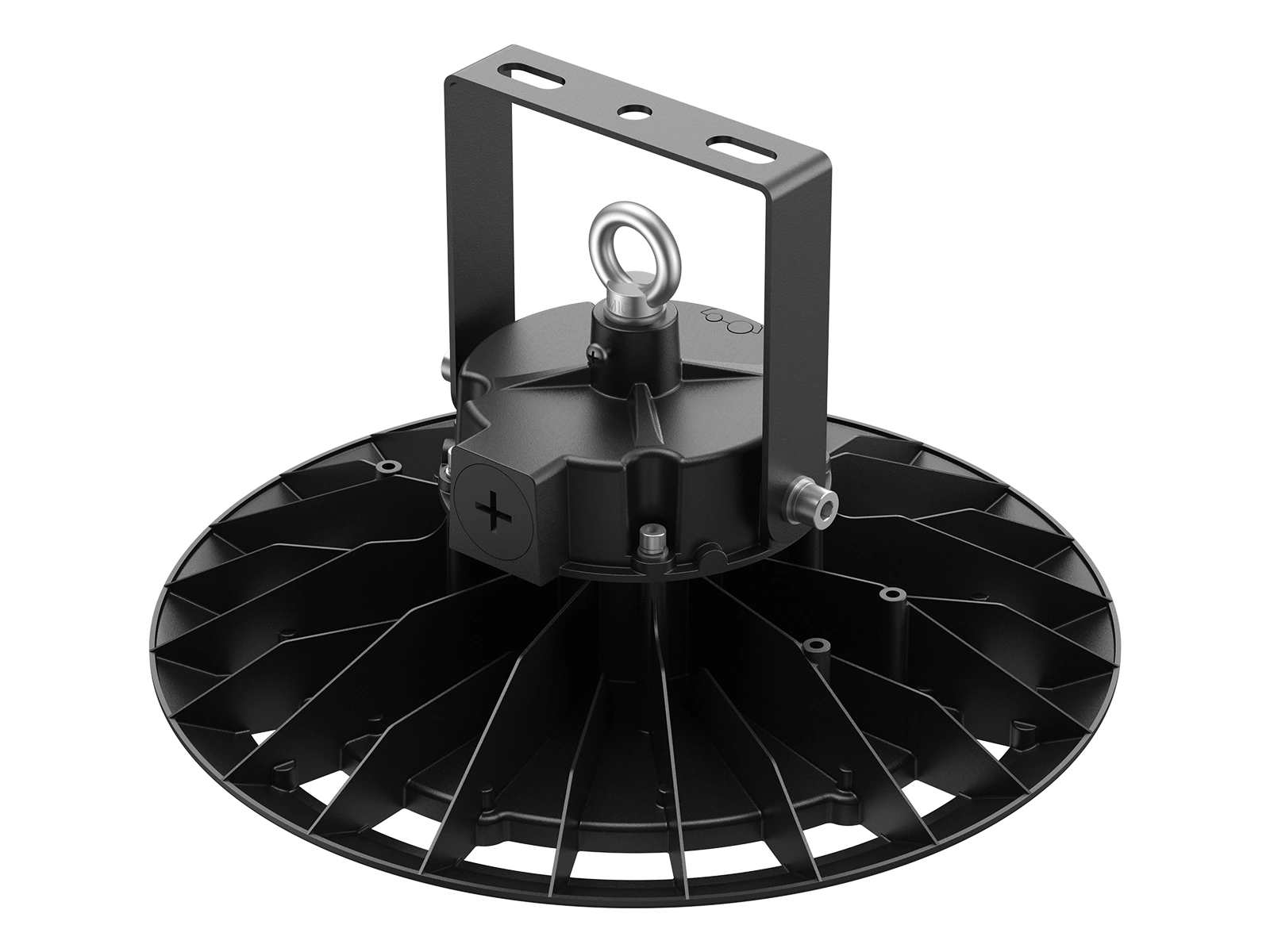

HB73 Ecolux

The product has been delisted on the website, please contact our sales team.
Performance LED High Bay Lights ≥200LPW CCT Selectable Power Selectable Zhaga Socket

HB73 is an economical and compact design high bay light, with the optimized heat sink structure.  The 4 power 100W/150W/200W/240W and 4 sizes compact design saves cost and freight, power selectable easy for stock and quick delivery, 160lm/W or 200lm/W different efficiency for optional for meet the different budget.

  • 160LPW/200LPW.
  • Compact design for four sizes.
  • Full wattage 100W, 150W, 200W, 240W.
  • Intelligent control: Twist microwave motion sensor and PIR sensor, 0-10V dimmable.
  • Multiple beam angel: 60°, 90°, 120°.
  • Multiple installations: loop hanging, ceiling mounting.
  • Full certificates CE, ROHS, CB,  C-tick, SAA available.
  • PC and ALU reflector are optional.

Applications: Indoor ceiling application, Warehouse, Factory, Industrial facility, Chemical Facilities, Exhibition centers, Shopping malls, Stadiums, Toll stations

* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HB73 01
HB73 02
HB73 03
Series CodeHB73
Power100W, 150W, 200W, 240W
Efficacy160lm/W, 200lm/W
Input Voltage120-277VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection6kV line-line, 6kV line-earth
UGR level28
ControlDimmable, DALI, Microwave motion sensor, PIR sensor, casambi
IP RatingIP65
IK RatingIK08
CCT3000K, 4000K, 5000K
CRI(Ra)70, 80
Operating Temperature-30°C to + 50°C
Mounting OptionLoop Hanging, Ceiling Mounting
Warranty5 Years
