ST52 Baldr

ST52 Baldr

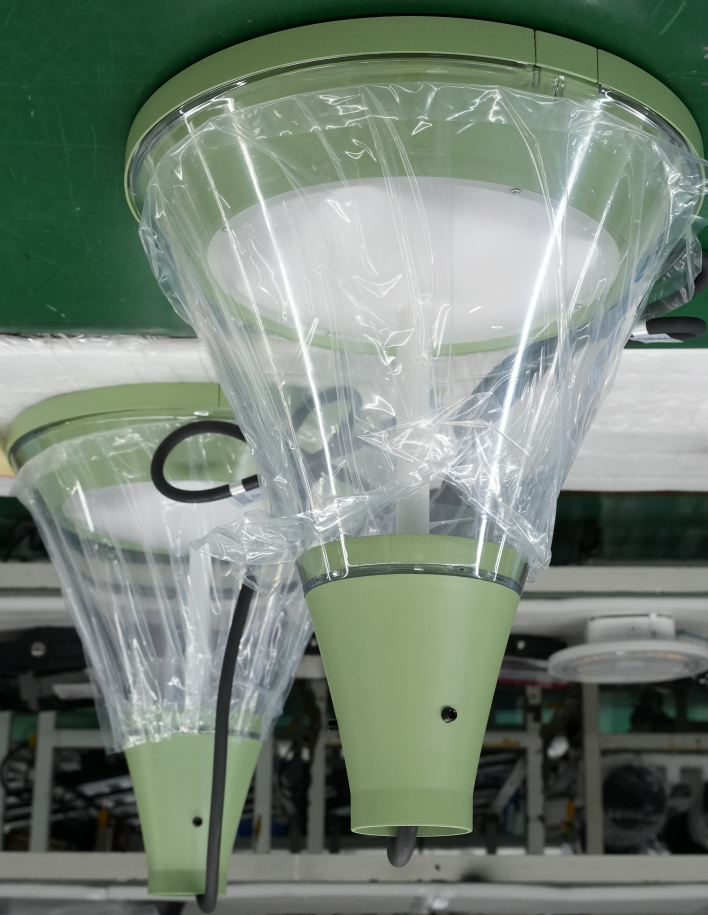

Baldr is 360° post top luminaire with direct and indirect ligting options. Classic round open clear PC cover helps to eliminate shadows caused by lamp arms, providing a high efficacy up to 140lm/W. With Indirect lighting option, lights comes up from the bottom, and reflected by the arch roof to reduce the glare, providing visual comfort to human eyes. Besides that, it can be optimized with a range of different controls, such as DALI, motion detection, photocell, ZHAGA etc for a tailored energy efficient output.

  • Available in 20W/40W/60W, system efficacy up to 140lm/W
  • Direct and indirect lighting options
  • Intelligent control: 0-10V / DALI / motion detection
  • Compatible with NEMA / ZHAGA book 18 socket
  • Customized power/CCT adjustable solutions
  • φ60mm adapter as standard
  • IP66 IK09 rated

Applications: Building surrounds,  Parks, promenades & pathways, Pedestrian areas & cycle paths, urban & residential streets

* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
ST52 01
ST52 02
ST52 03
ST52 04
Series CodeST52
Power20W, 40W, 60W
Efficacy140lm/W
Input Voltage100-240 VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection4kV line-line, 6kV line-earth
ControlZhaga Wireless Control, Photocell Control
IP RatingIP66
IK RatingIK09
CCT3000K, 4000K, 5000K
CRI(Ra)70, 80
Operating Temperature-30°C to + 50°C
Mounting OptionPost Top
Warranty5 Years
