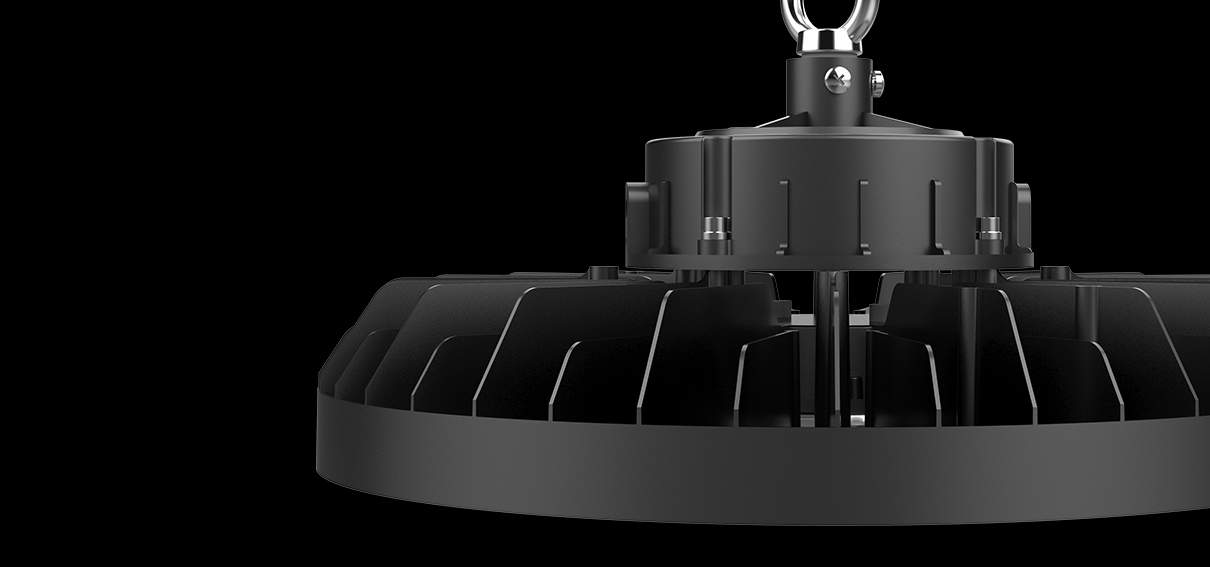

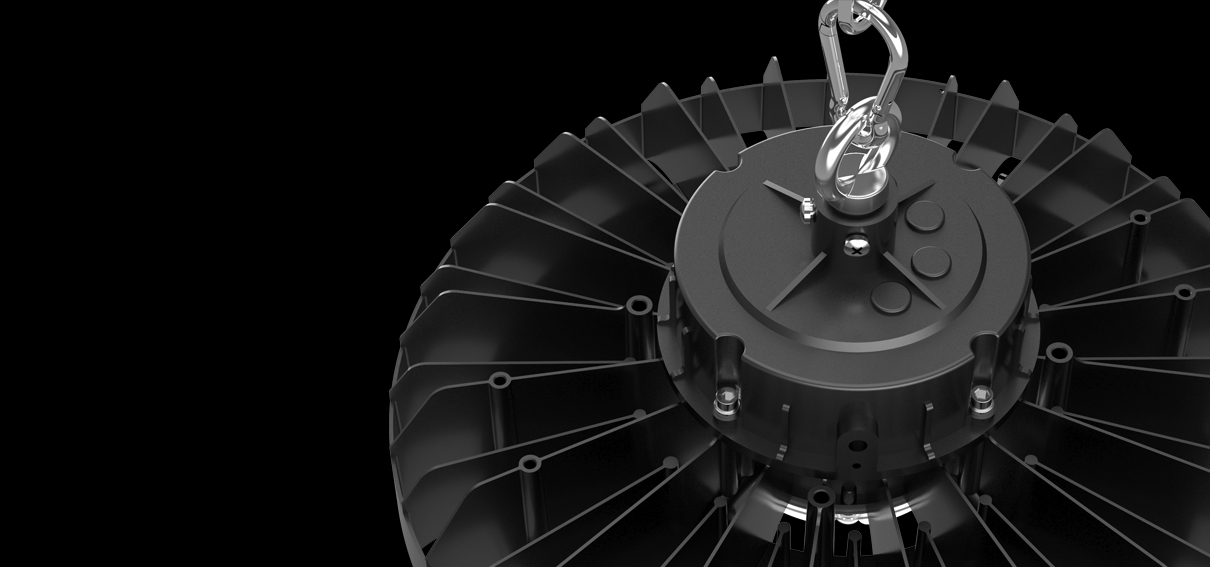

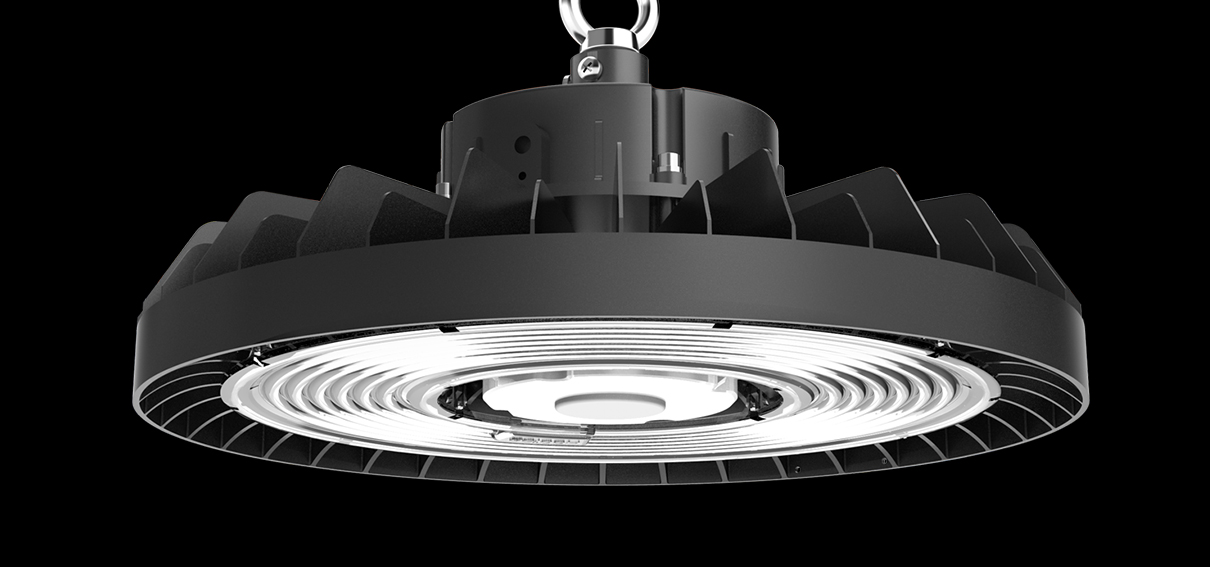

A real built-in sensor high bay with wireless control, motion sensors, daylight sensors, Zigbee, Dali, to provide smart control and additional energy savings. The fixture produce an high output up to 190lm/w ,various beam angle 60°90°120°, ensuring light is directed downwards in high bay applications. The heat sink featured with best design for heat radiation, support a working condition in 65℃
| Model No. | HB25-100 | HB25-120 | HB25-150 | HB25-200 |
|---|---|---|---|---|
| Power Consumption | 100±5W | 120±6W | 150±7W | 200±10W |
| LED Type | SMD | |||
| Luminous Flux (±5%) | 19000lm | 22800lm | 28500lm | 38000lm |
| Efficacy (5000K, Ra70) | 190(±5%) LM/W | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | H00108/H00111/H00115 | |||
| Input Voltage | 100-240V/100-277V | |||
| Power Factor | ≥0.93 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 4kV line-line,6kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | ∅360 x 186mm (∅14.17" x 7.32") | |||
| Luminaire Net Weight | 3.9±0.3kg (8.6±0.66Lbs) | 4.3±0.3kg (9.47±0.66Lbs) | ||
| Export Carton Size | 428×428×225mm (16.85" x16.85" x 8.86") | |||
| Gross Weight | 5.3±0.3kg (11.68±0.66Lbs) | 5.7±0.3kg (12.57±0.66Lbs)) | ||
| Finish | Powder Coating | |||
| Fixture Color | Black | |||
| IP Rating | IP65 | |||
| Mounting Option | Loop Hanging / Ceiling Mounting / Wall Mounting | |||
| Operating Temperature | Normal：-30°C to + 50°C (-22°F to 122°F) | |||
| motion sensor：0°C to + 50°C (32°F to 122°F) | ||||
| Life Time | >50,000Hrs | |||
| Dimmable | Dimmable and Non-dimmable | |||
| Intelligent Control | Microwave motion Sensor/Zigbee/Wireless Control | |||
| Accessory | PC Optics Lens - H00108/H00111/H00115 | |||
| Safety Chain - 250mm chain, M8 + M8 Hook>340mm | ||||
| Plug - EU/US/AU Standard Plug | ||||
| Model No. | HB25-100 | HB25-120 | HB25-150 | HB25-200 | HB25-240 | HB25-300 |
|---|---|---|---|---|---|---|
| Power Consumption | 100±5W | 120±6W | 150±7W | 200±10W | 240±12W | 300±15W |
| LED Type | SMD | |||||
| Luminous Flux (±5%) | 14000LM | 16800LM | 21000LM | 28000LM | 36000LM | 45000LM |
| Efficacy (5000K, Ra70) | 140 LM/W | 150 LM/W | ||||
| CCT | 5000K (3000K, 4000K optional) | |||||
| Color Rendering Index | Ra70 (Ra80 optional) | |||||
| Beam Angle | H55601/H00108/H00111/H00115/H55601 | |||||
| Input Voltage | 100-240V/100-277V | |||||
| Power Factor | ≥0.93 | |||||
| Frequency | 50 / 60 Hz | |||||
| Surge Protection | 4kV line-line,6kV line-earth | 2kV line-line,4kV line-earth | ||||
| Driver Type | Constant Current (CC) | |||||
| Product Dimension | ∅360 x 186mm (∅14.17" x 7.32") | ∅360 x 190mm(∅14.17" x 7.24") | ||||
| Luminaire Net Weight | 3.9±0.3kg (8.6±0.66Lbs) | 4.3±0.3kg (9.47±0.66Lbs) | 5.1±0.3kg(11.24±0.66Lbs) | |||
| Export Carton Size | 428×428×225mm (16.85" x16.85" x 8.86") | |||||
| Gross Weight | 5.3±0.3kg (11.68±0.66Lbs) | 5.7±0.3kg (12.57±0.66Lbs) | 6.5±0.3kg (14.33±0.66Lbs) | |||
| Finish | Powder Coating | |||||
| Fixture Color | Black | |||||
| IP Rating | IP65 | |||||
| Mounting Option | Loop Hanging / Ceiling Mounting / Wall Mounting | |||||
| Operating Temperature（Normal） | -30°C to + 50°C (-22°F to 122°F) | |||||
| Operating Temperature（motion sensor） | 0°C to + 50°C (32°F to 122°F) | |||||
| Life Time | >50,000Hrs | |||||
| Dimmable | Dimmable and Non-dimmable | |||||
| Intelligent Control | Microwave motion Sensor/Zigbee/Wireless Control | |||||
| Accessory | PC Optics Lens - H55601/H00108/H00111/H00115 | |||||
| Safety Chain - 250mm chain, M8 + M8 Hook>340mm | ||||||
| Plug - EU/US/AU Standard Plug | ||||||
| Model No. | HB25-100 | HB25-150 | HB25-200 |
|---|---|---|---|
| Power Consumption | 100±5W | 150±7W | 200±7W |
| Luminous Flux (±5%) | 15000lm | 22500lm | 30000lm |
| Efficacy (5000K, Ra70) | 150(±5%) LM/W | ||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | ||
| Color Rendering Index | Ra70 / Ra80 | ||
| Beam Angle | H55601/H00108/H00111/H00115 | ||
| Input Voltage | 220-240VAC | ||
| Power Factor | ≥0.92 | ||
| Frequency | 50 / 60 Hz | ||
| Surge Protection | 6kV line-line,4kV line-earth | ||
| Driver Type | Constant Current (CC) | ||
| Product Dimension | ∅360 x 316mm(∅14.17" x 12.44") | ∅360 x 394mm (∅14.17" x 15.51") | |
| Luminaire Net Weight | 3.7±0.3kg (8.16±0.66Lbs) | 4.1±0.3kg (9.04±0.66Lbs) | |
| Export Carton Size | 420×420×200mm (16.54" x16.54" x 7.87") | ||
| Gross Weight | 4.8kg±0.3kg (10.58±0.66Lbs) | 5.2kg±0.3kg (11.46±0.66Lbs) | |
| Finish | Powder Coating | ||
| Fixture Color | Black | ||
| IP Rating | IP65 | ||
| Mounting Option | Loop Hanging | ||
| Operating Temperature（Warranty 5 Years） | -30°C to + 65°C(-22°F to 149°F) | ||
| Operating Temperature（Warranty 10 Years） | -30°C to + 50°C(-22°F to 122°F) | ||
| Life Time | >50,000Hrs | ||
| Dimmable | Dimmable and Non-dimmable | ||
| Intelligent Control | Microwave motion Sensor/Zigbee wireless Control | ||
| Accessory | PC Optics Lens - H55601/H00108/H00111/H00115 | ||
| Safety Chain - 250mm chain, M8 + M8 Hook>340mm | |||
| Plug - EU/AU/US Standard Plug | |||
| Series Code | HB25 |
|---|---|
| Power | 100W/120W/150W/200W/240W/300WW |
| Efficacy | 140LM/W, 150LM/W, 190LM/W |
| IP Rating | IPIP65 |
