HB35 Elite

Specification LED High Bay Lights Beam Angle Selectable CCT Selectable Power Selectable ≥200LPW High Temperature Zhaga Socket Rack Optics ≥300W

HB35 Highbay is a Premium Design for High-end Projects. The unique and premium design always stands out when bidding for important projects. HB35 comes standard with a driver box, and it becomes easy to match more intelligent controls without affecting the original design. Plug-and-play microwave/PIR sensor is also available, it is field installed in seconds without wiring work by electricians.

  • Super light efficiency 190lm/W for 100/120/150/200W.
  • 30*90° rack optic is available.

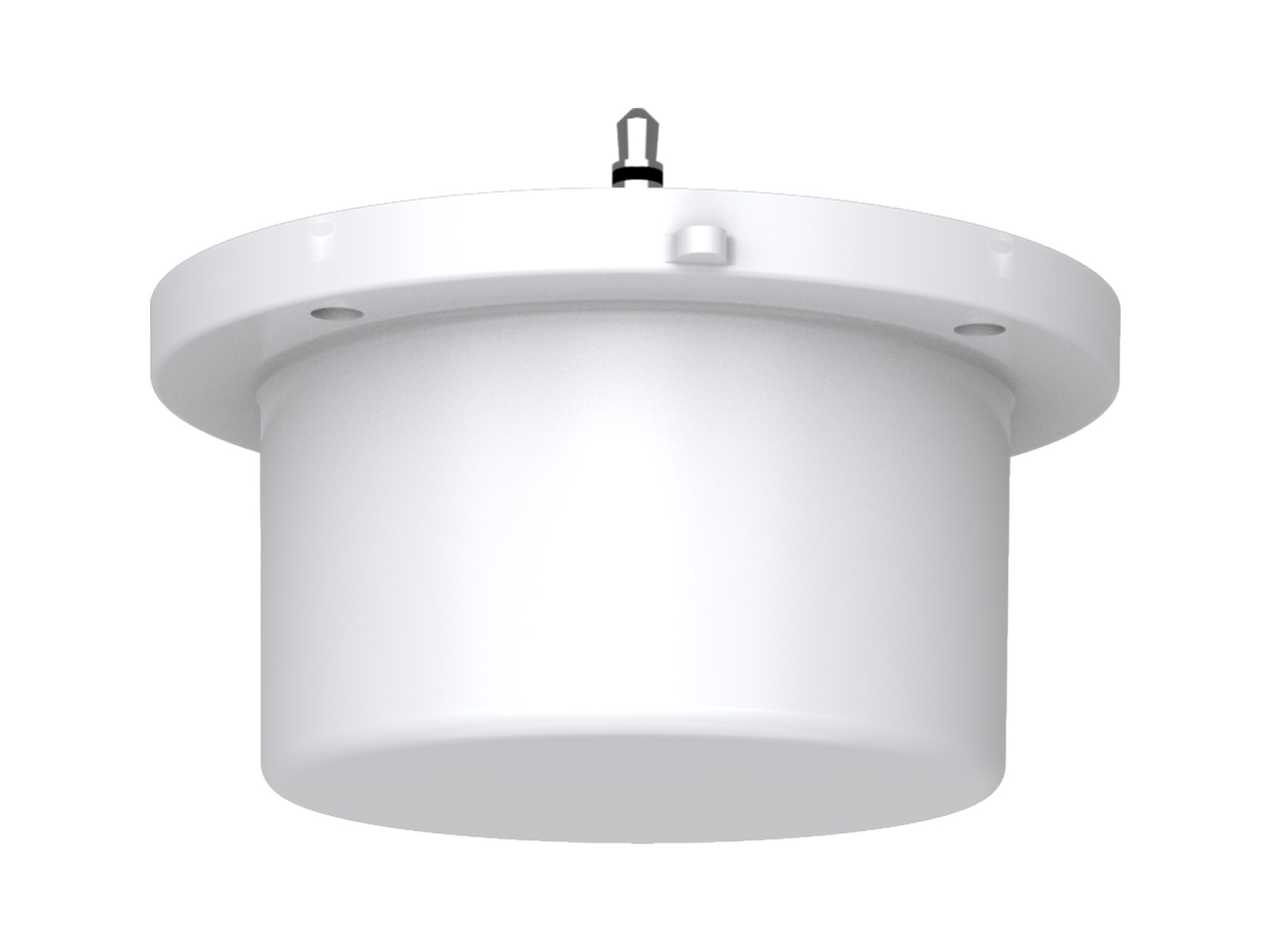

  • Plug-and-play sensor: microwave sensor, PIR sensor.

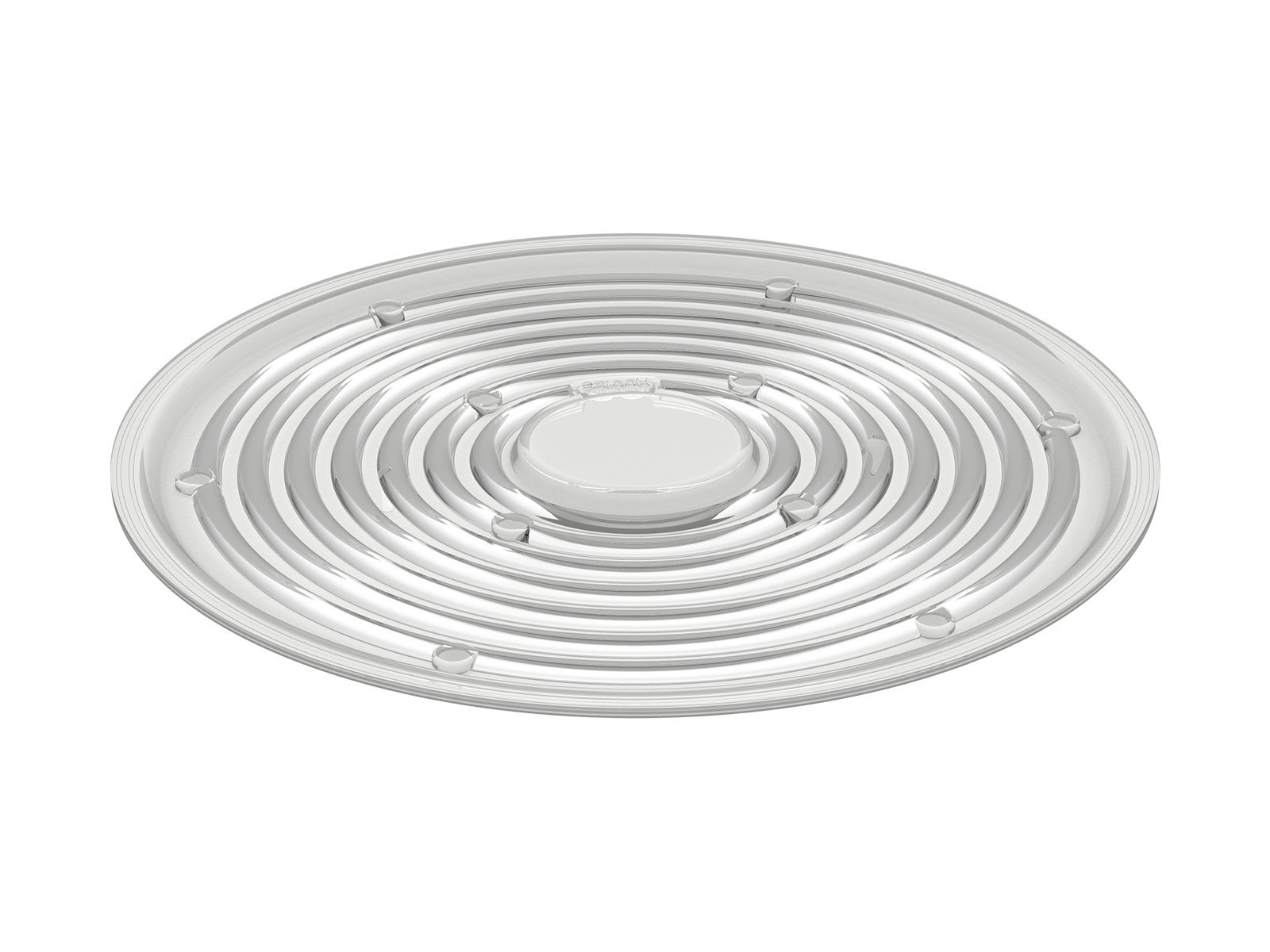

  • PC and ALU reflectors are optional.
  • Multiple mounting: eyebolt, hook, or ceiling bracket.
  • Beam angle & power selectable versions are available
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HB35 8 years warranty industrial led high bay
Series CodeHB35
Power100W, 120W, 150W, 200W, 240W
Efficacy145lm/W, 150lm/W
Input Voltage100-240 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection6kV line-line, 10kV line-earth
UGR level25
ControlDimmable, DALI, Microwave Sensor, ZigBee Control, Wireless
IP RatingIP65
IK RatingIK10
CCT5000K, 4000K, 3000K
CRI(Ra)80
Operating Temperature-30°C to + 50°C
Mounting OptionLoop Hanging, Ceiling Mounting
Warranty5 Years
