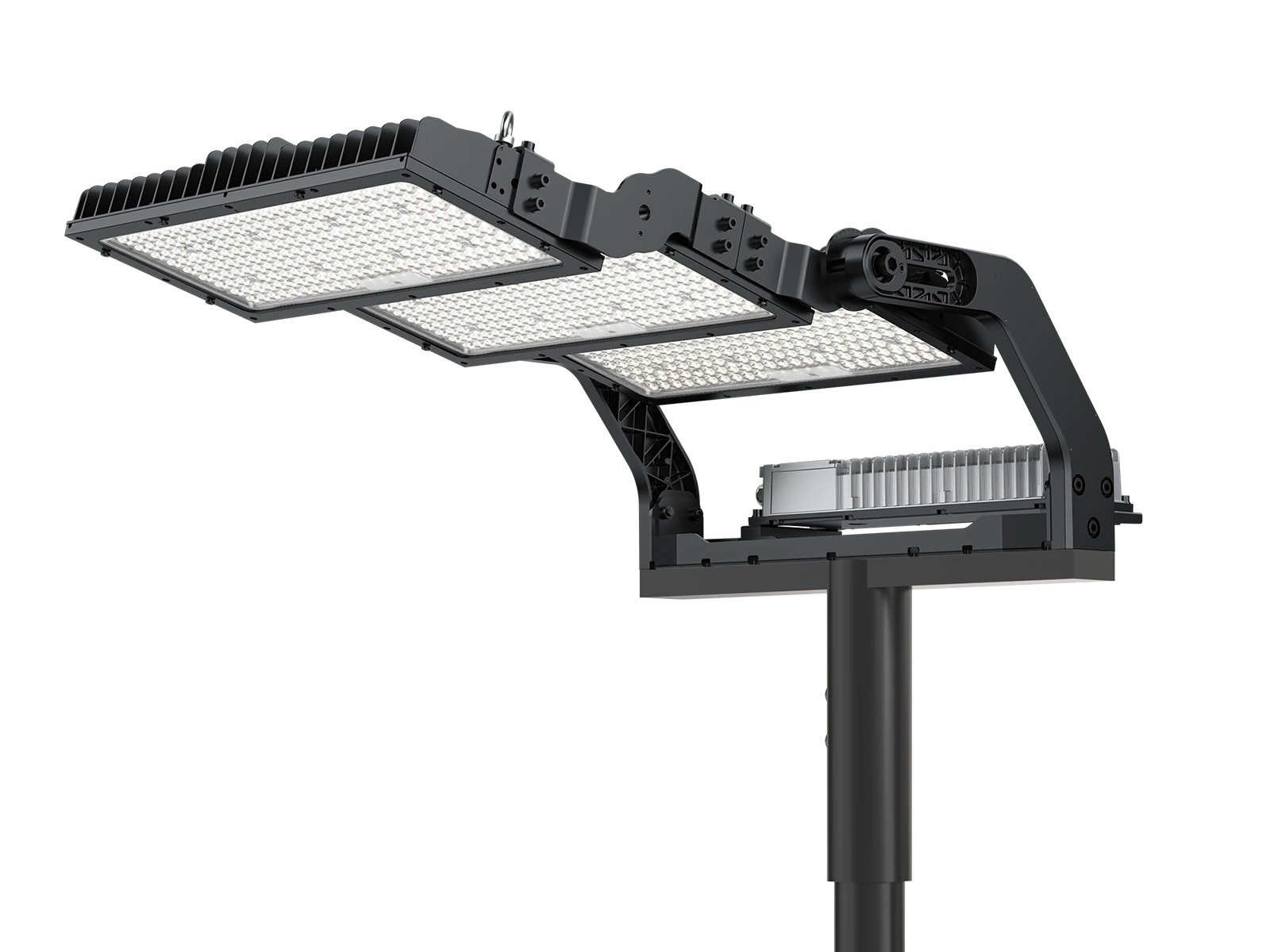

SP02 Polarized-X

Performance LED Sports Lights Anti-Corrosion Modular Design HD Broadcast Visor Optional Bird Spike Optional Anti-glare Grid Optional 3G Vibration Test Approval Aiming Device Optional Remote Gearbox Solution Bird-proof Sleeve Optional Neighbor Friendly Medium-Scale Area Excellent Spill

SP02 is a top-tier lighting solution designed to minimize spill light, reduce glare, and provide effective up-light control for sports courts. Ideal for small to medium-sized venues, it is particularly well-suited for locations where surrounding buildings or roadways require stringent light control measures.

  • Achieve maximum polarization 57°, best-in-class spill light, up-light, and glare control
  • Accessories like visors and anti-glare grids further improve light utilization.

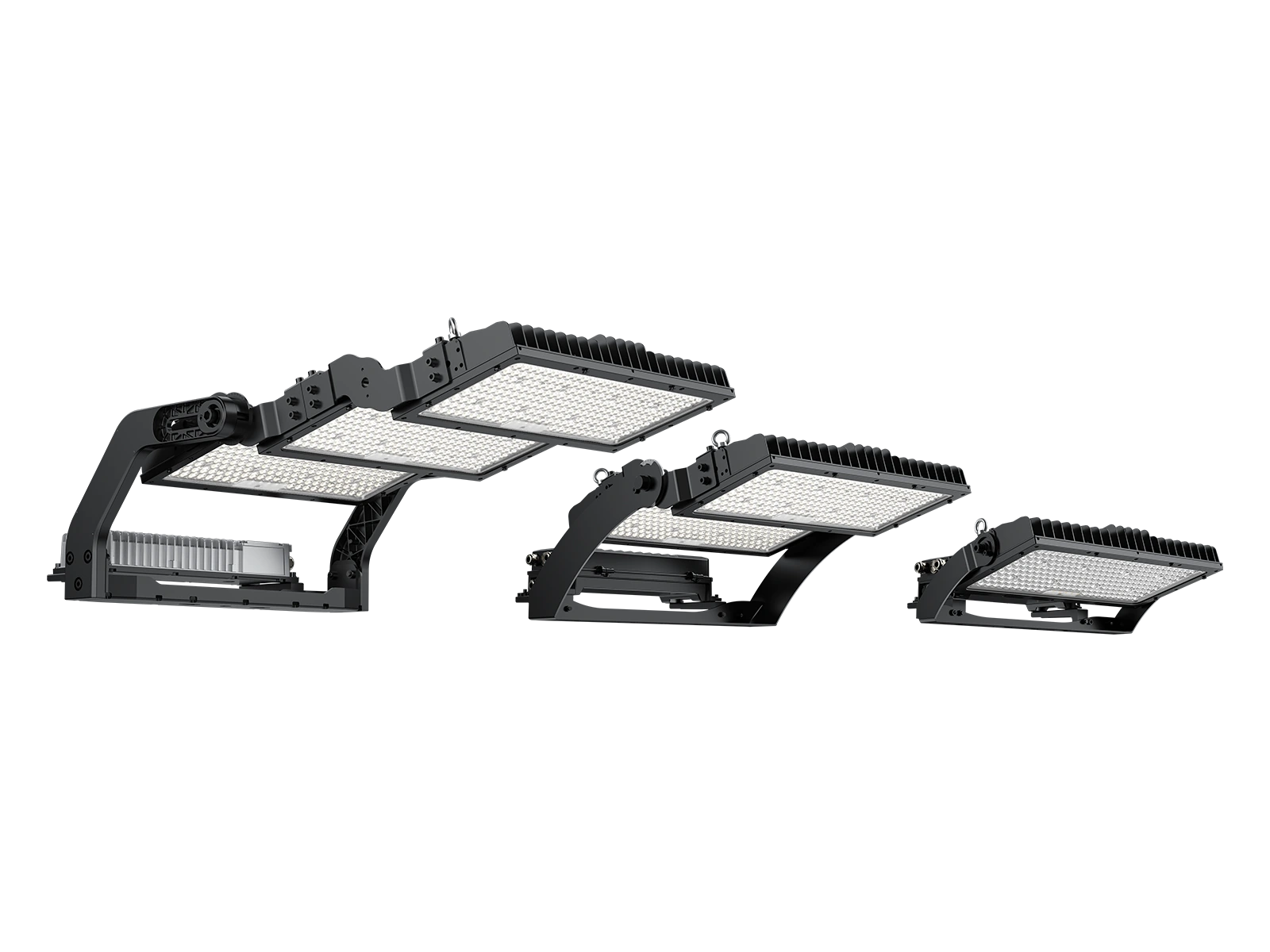

  • 600W modules can be combined for 1200W or 1800W, simplifying storage and enhancing flexibility.
  • With the scale axis, easy for accurate installation.
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

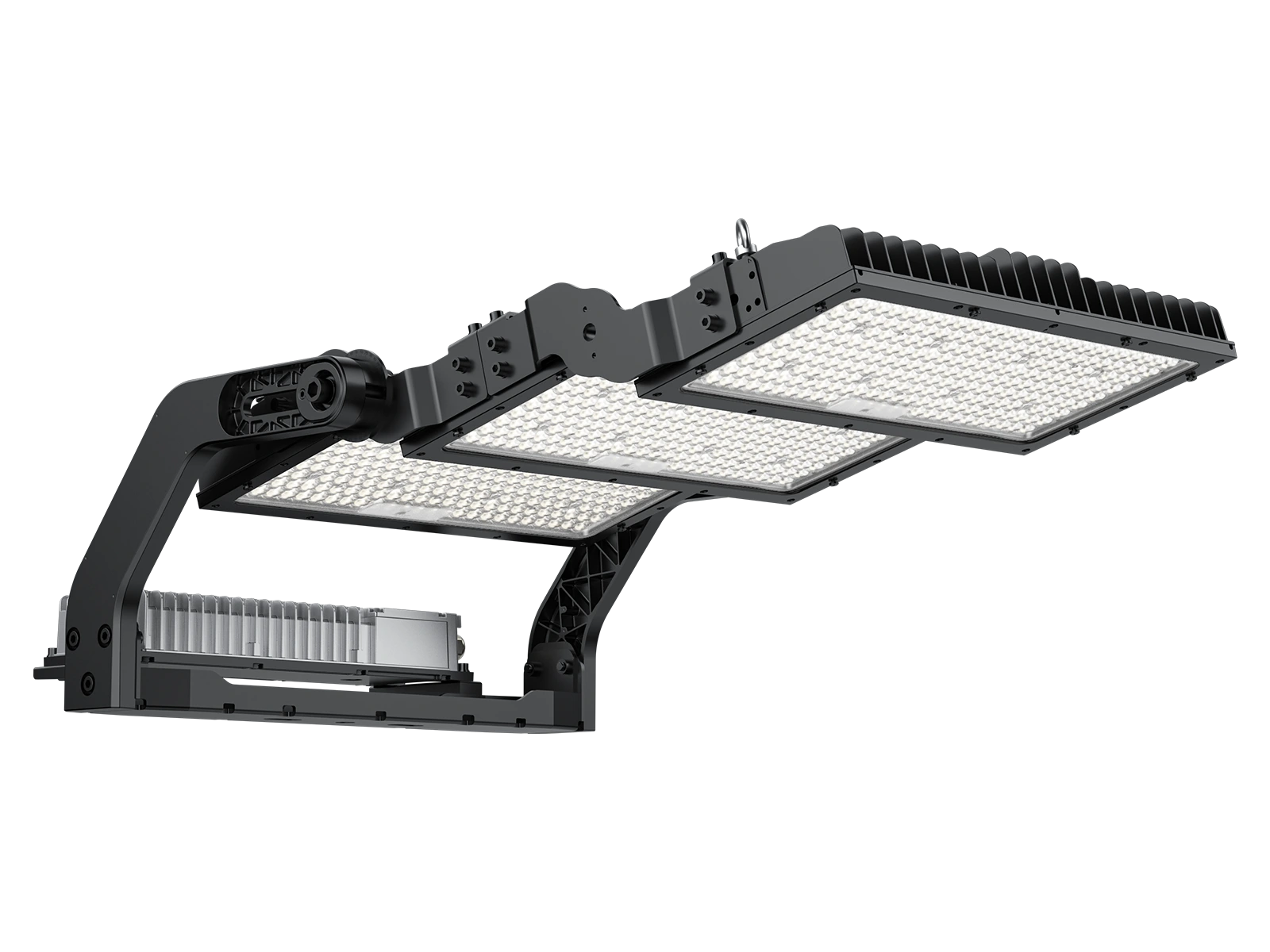

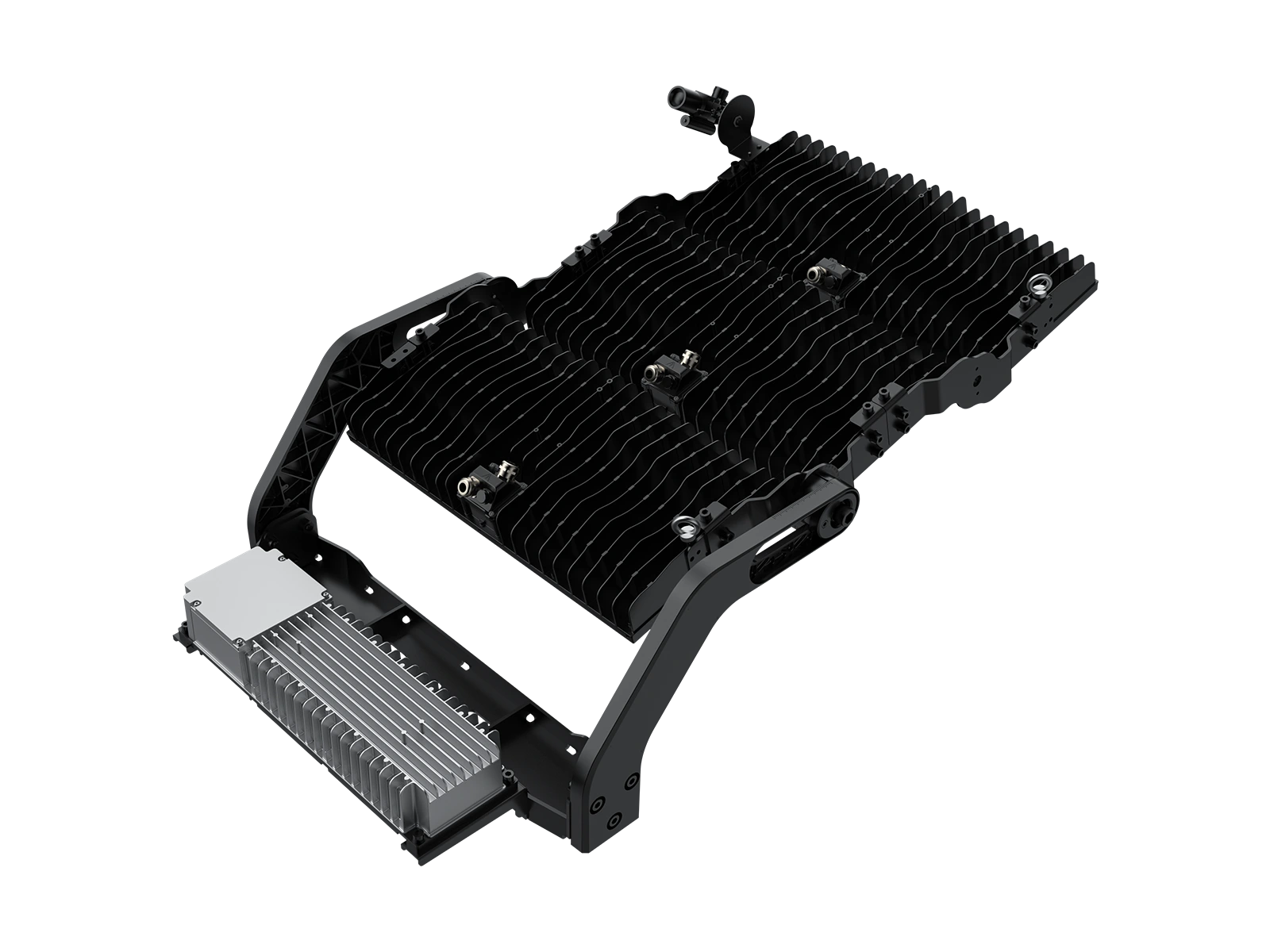

SP02 Sports Lighting 1
SP02 Sports Lighting 2
SP02 Sports Lighting 3
SP02 Sports Lighting support HD broadcast and relevant accessories 4
SP02 Sports Lighting 5
Series CodeSP02
Power600W, 1200W, 1800W
Efficacy130lm/W
Input Voltage220-277VAC, 50/60Hz; 200-277VAC, 50/60Hz; 200-420VAC, 50 / 60Hz, 50 / 60 Hz
Power Factor>0.92, >0.95
Surge Protection10kV line-line, 20kV line-earth
ControlDALI, DMX
IP RatingIP66
IK RatingIK08
CCT5700K, 3000K
Operating Temperature-30°C to + 45°C
Mounting OptionBracket Mounting
Warranty5 Years
